Hyundai Venue: Audio / Mic. Repair procedures

Hyundai Venue (QX) (2020-2023) Service Manual / Body Electrical System / Audio / Mic. Repair procedures

Inspection
1.
Disconnector the negative (-) battery terminal.
2.

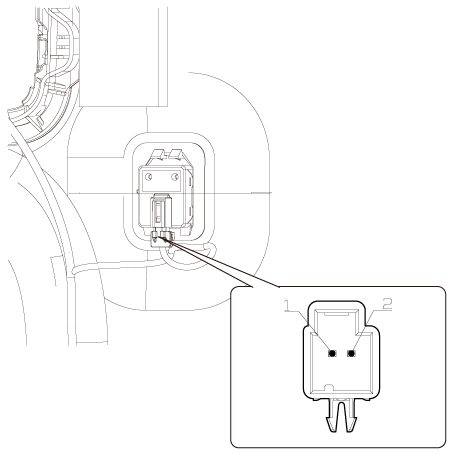

Remove the mic after disconnect the connector.

Hyundai Venue. Mic. Repair procedures

3.

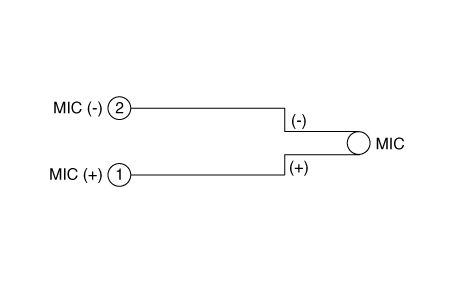

Check the continuity of between terminals.

Hyundai Venue. Mic. Repair procedures
