Hyundai Venue (QX): Audio / USB jack. Repair procedures

Hyundai Venue (QX) (2020-2026) Service Manual / Body Electrical System / Audio / USB jack. Repair procedures

Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the console upper cover.
(Refer to Body - "Floor Console Assembly")
3.

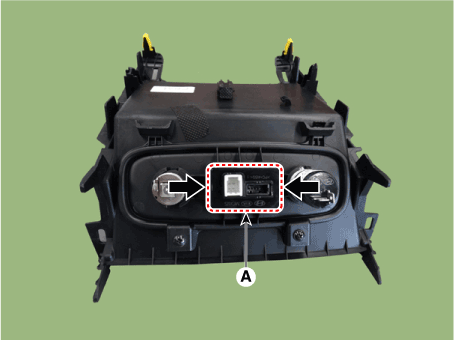

Remove the USB (A) after disengaging the hooks.

Hyundai Venue. USB jack. Repair procedures
Installation
1.
Install the USB jack.
2.
Install the console front complete assembly.
3.
Connect the negative (-) battery connector.

    Description The multimedia jack on the console upper cover is for customers who like to listen to external portable music players like the MP3 etc.

    Inspection 1. Disconnector the negative (-) battery terminal. 2. Remove the mic after disconnect the connector.
