Removal
1.
Disconnect the negative (-) battery terminal.
2.

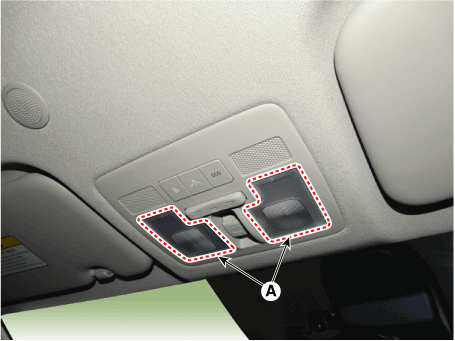

Disconnect the overhead console lamp lense (A).

Hyundai Venue. Overhead Console Lamp. Repair procedures

3.

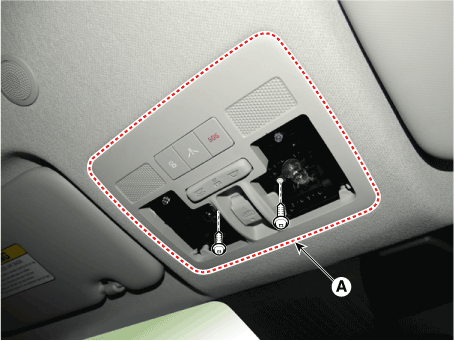

Remove the mounting screws and then remove the overhead console (A).

Hyundai Venue. Overhead Console Lamp. Repair procedures

4.

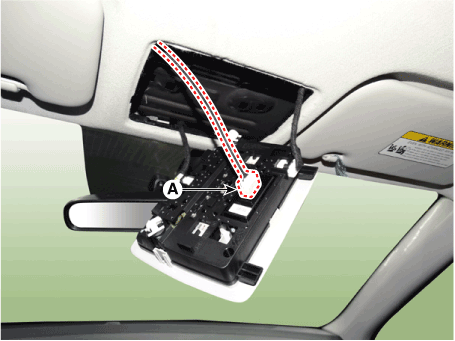

Remove the overhead console after disconnect the connector (A).

Hyundai Venue. Overhead Console Lamp. Repair procedures

Installation
1.
Install the overhead console lamp after connecting the connector.
2.
Install the lens after tightening 2 screws.
