Hyundai Venue (QX): Parking Distance Warning (PDW) / Parking Distance Warning (PDW) Sensor. Repair procedures

Hyundai Venue (QX) (2020-2026) Service Manual / Advanced Driver Assistance System (ADAS) / Parking Distance Warning (PDW) / Parking Distance Warning (PDW) Sensor. Repair procedures

Removal
1.
Remove the bumper cover.
(Refer to Body - "Front Bumper Cover")
2.

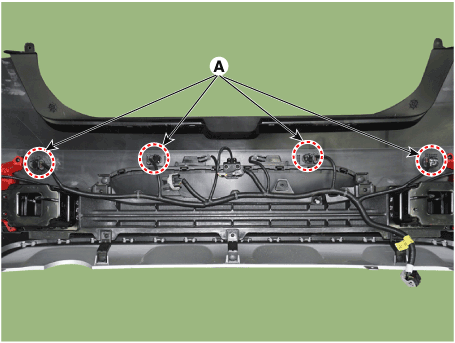

Disconnect the connector (A) from the PDW sensor.
[L - Type]

Hyundai Venue. Parking Distance Warning (PDW) Sensor. Repair procedures
Installation
1.
Install the PDW sensor.
2.
Install the bumper cover.

    Circuit Diagram
