Description
1.

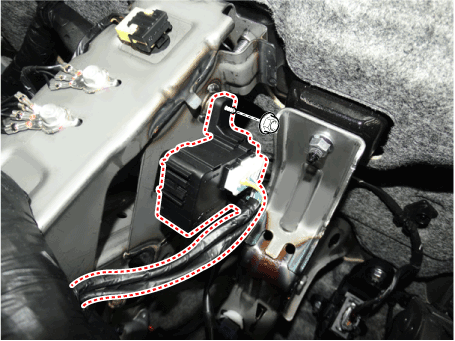

PDM(Power Distribution Module) Relay Box is used only in SMK(smart key) variant.
2.
It consists of 3 relays namely, ACC relay, IG1 relay, IG2 relay.
3.
PDM Relay Box is exclusive used for starting purpose in SMK variant.
