INSPECTION
1.
Remove the front left door trim.
(Refer to Body - "Front Door Trim")
2.

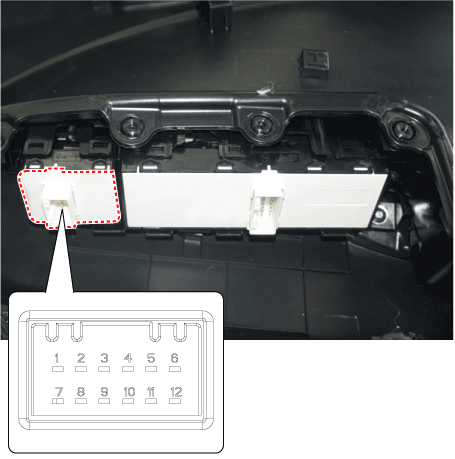

Disconnect the mirror connector.

Hyundai Venue. Power Door Mirror Switch. Repair procedures

3.

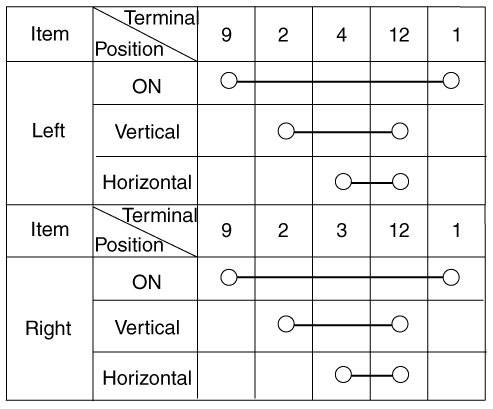

Check for continuity between the terminals in each switch position according to the table.
[Power mirror switch]

Hyundai Venue. Power Door Mirror Switch. Repair procedures

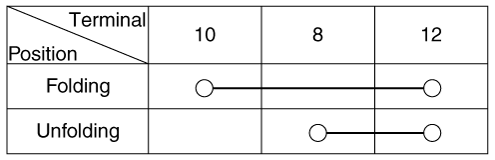

[Mirror folding switch]

Hyundai Venue. Power Door Mirror Switch. Repair procedures

Removal
1.
Disconnect (-) battery terminal.
2.
Remove the front left door trim.
(Refer to Body - "Front Door Trim")
3.

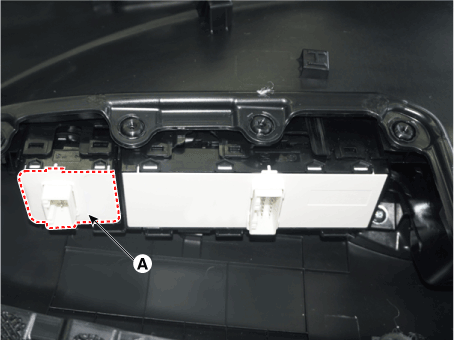

Remove the door mirror switch assembly (A) by pulling out both ends of the switch holders.

Hyundai Venue. Power Door Mirror Switch. Repair procedures

Installation
1.
Connect the actuator connector and then install the mirror actuator.
2.
Install the mirror.
3.
Connect (-) battery terminal then check if mirror works normally.

    Power Door Mirror Switch. Schematic diagrams

    ..

    Power Door Mirror Actuator. Repair procedures

    Removal 1. Disconnect (-) battery terminal. 2. Using a fastener remover (C), remove the mirror (A) as illustration below...
