Hyundai Venue: Body Side Molding / Roof Rack. Repair procedures

Hyundai Venue (QX) (2020-2022) Service Manual / Body (Interior and Exterior) / Body Side Molding / Roof Rack. Repair procedures

Removal

•	Put on gloves to prevent hand injuries.

•	When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•	Take care not to scratch the body surface.

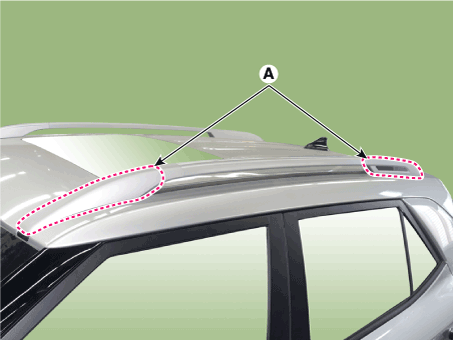

1.	Using a flat-tip screwdriver and remove the roof rack cover (A).

Loosen the mounting nuts and remove the roof rack assembly (A).

Tightening torque :

3.9 - 4.4 N.m (0.4 - 0.45 kgf.m, 2.9 - 3.3 lb-ft)

Hyundai Venue. Roof Rack. Repair procedures

To install, reverse removal procedure.

•	Replace any damaged clips (or pin-type retainers).
