Inside the fuse/relay box cover, you can find the fuse/relay label describing fuse/ relay names and ratings.
Information
Not all fuse panel descriptions in this manual may be applicable to your vehicle; the information is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

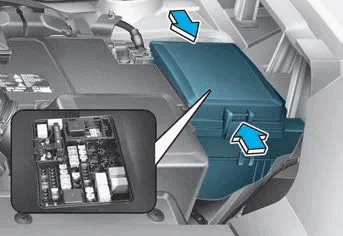

Engine compartment fuse panel

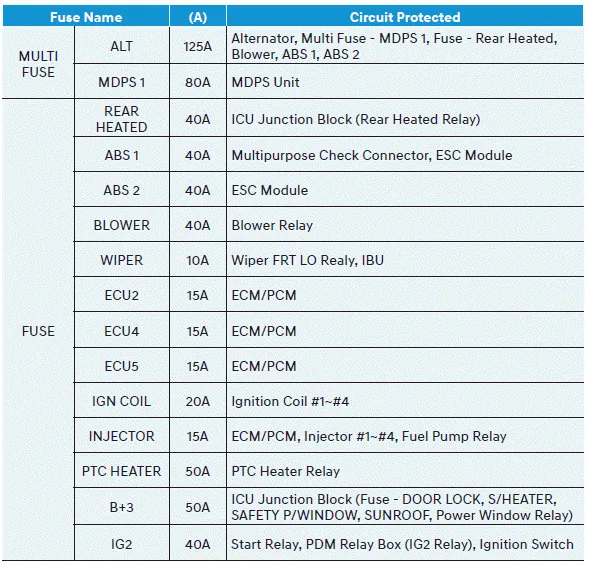

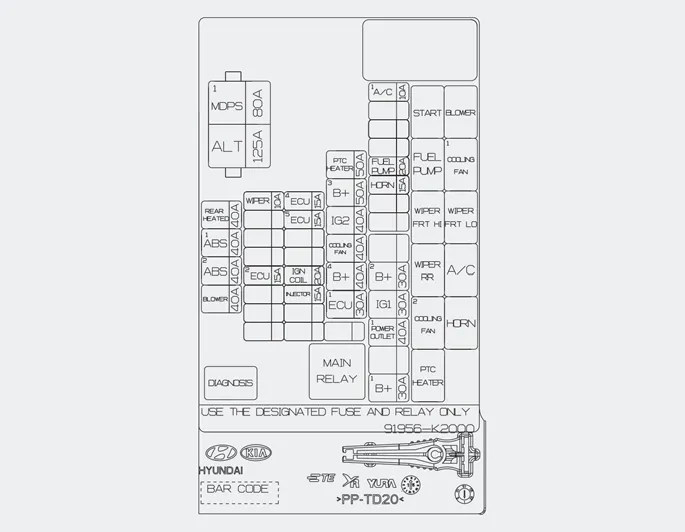

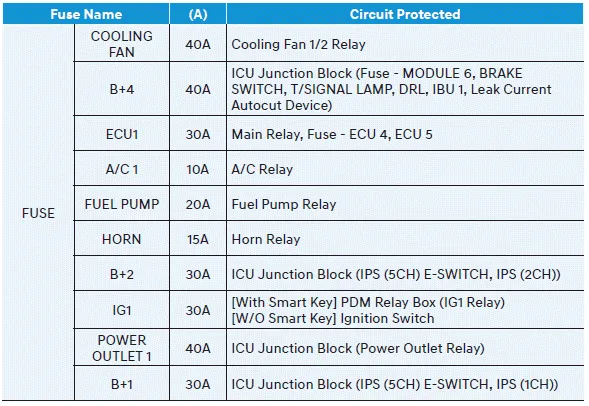

Engine compartment fuse panel

Instrument panel fuse panel Inside the fuse/relay box cover, you can find the fuse/relay label describing fuse/ relay names and ratings. Information Not all fuse panel descriptions in this manual may be applicable to your vehicle; the information is accurate at the time of printing.
Consult an authorized HYUNDAI dealer to replace most vehicle light bulbs. It is difficult to replace vehicle light bulbs because other parts of the vehicle must be removed before you can get to the bulb.
Component Location [Engine Room] 1. Condenser 2. Discharge hose 3. Suction & Liquid tube assembly 4. Compressor 5. Service port (High pressure) 6. A/C Pressure transducer (APT) 7. Service port (Low pressure) 8.
Diagnosis With GDS 1. The heating, ventilation and air conditioning can be quickly diagnosed failed parts with vehicle diagnostic system (GDS). ※ The diagnostic system (GDS) provides the following information.
