Hyundai Venue (QX): Fuses / Fuse/Relay Panel Description

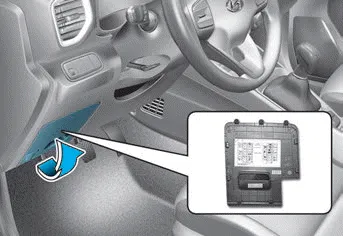

Instrument panel fuse panel

Hyundai Venue. Fuse/Relay Panel Description

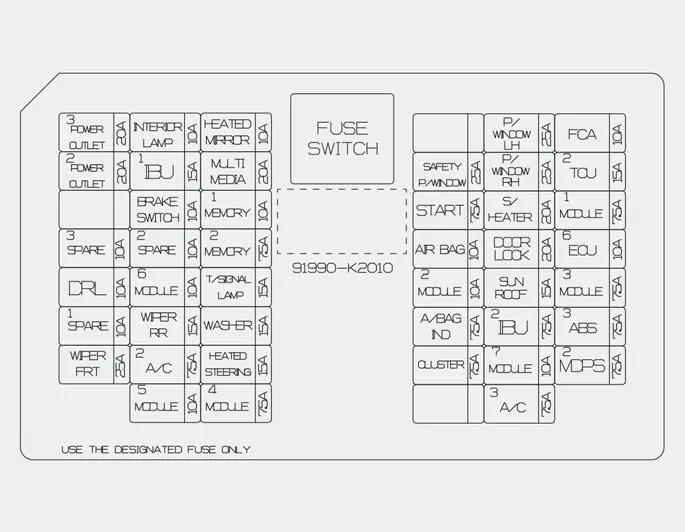

Inside the fuse/relay box cover, you can find the fuse/relay label describing fuse/ relay names and ratings.

Information

Not all fuse panel descriptions in this manual may be applicable to your vehicle; the information is accurate at the time of printing. When you inspect the fuse box on your vehicle, refer to the fuse box label.

Hyundai Venue. Fuse/Relay Panel Description

Instrument panel fuse panel

Hyundai Venue. Fuse/Relay Panel Description

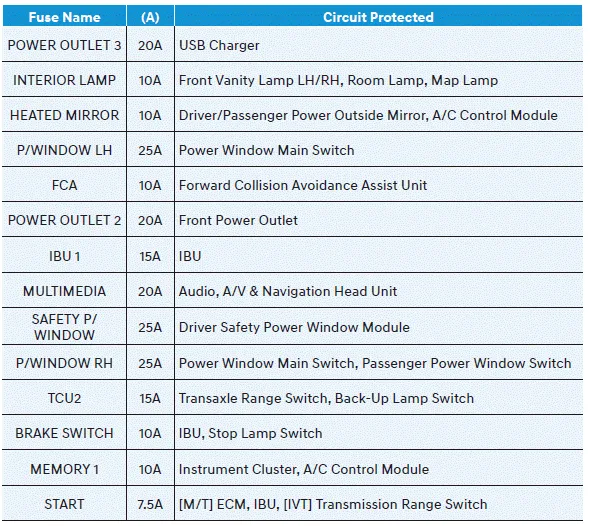

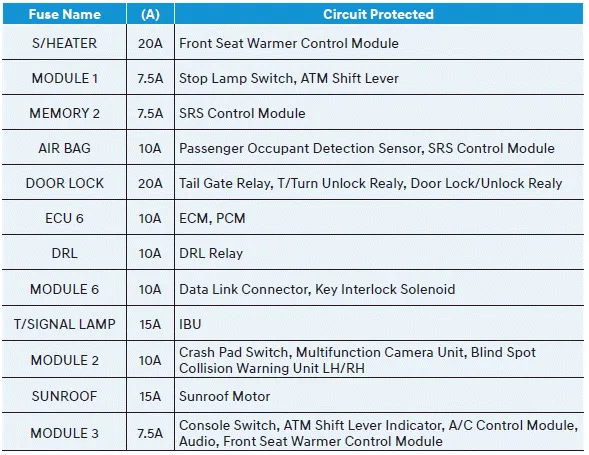

Driver’s side fuse panel

Hyundai Venue. Fuse/Relay Panel Description

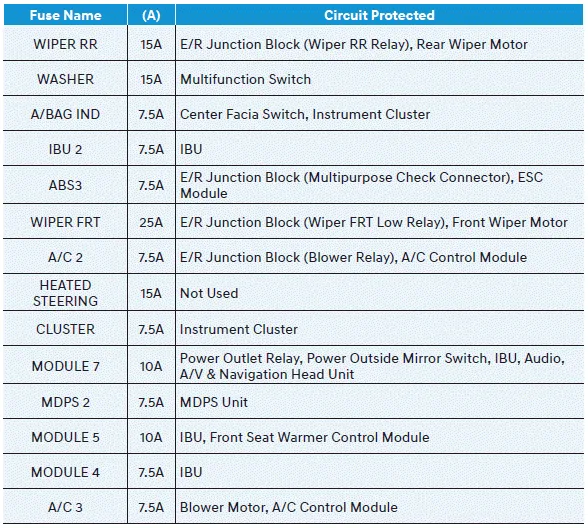

Driver’s side fuse panel

Hyundai Venue. Fuse/Relay Panel Description

Blade type fuse Cartridge type fuse 1. Turn the engine off. 2. Turn all other switches OFF. 3. Remove the fuse panel cover by pressing the tap and pulling up.

Inside the fuse/relay box cover, you can find the fuse/relay label describing fuse/ relay names and ratings. Information Not all fuse panel descriptions in this manual may be applicable to your vehicle; the information is accurate at the time of printing.
