Hyundai Venue (QX): Instrument Cluster / LCD Display

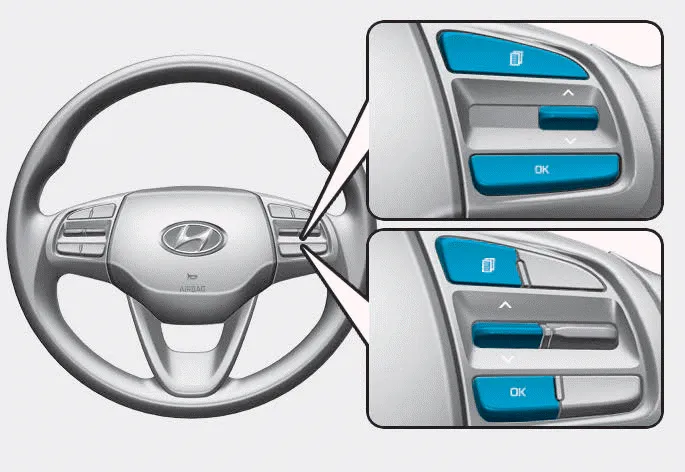

LCD Display Control
The LCD display modes can be changed by using the control buttons.
1.
: MODE button for changing modes
2.
: MOVE switch for changing items
3. OK : SELECT/RESET button for setting or resetting the selected item
Shift to P or N to start engine (for smart key system and Intelligent Variable transmission (IVT)) This warning message is displayed if you try to start the engine with the shift lever not in the P (Park) or N (Neutral) position.
Shift to P to edit settings This warning message appears if you try to adjust the User Settings while driving. For your safety, change the User Settings after parking the vehicle, applying the parking brake and moving the shift lever to P (Park).
Other information:
Hyundai Venue (QX) (2020-2026) Service Manual: Ambient Temperature Sensor. Repair procedures
Inspection 1. Check the resistance of the ambient temperature sensor between terminals 1 and 2 whether it changes by changing the ambient temperature. 1. Ambient Sensor (+) 2.
Hyundai Venue (QX) (2020-2026) Service Manual: PTC Heater. Description and operation
Description The PTC (Positive Temperature Coefficient) heater is installed at the exit or the backside of heater core. The PTC heater is an electric heater using a PTC element as an auxiliary heating device that supplements deficiency of interior heat source in highly effective diesel engine.
