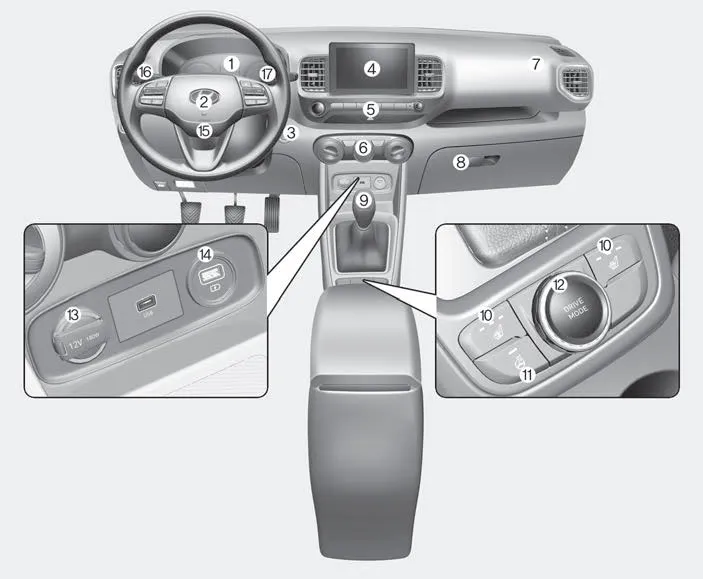

Hyundai Venue (QX): Vehicle Information / Instrument Panel Overview
1. Instrument cluster
2. Horn
3. Key ignition switch/ Engine Start/Stop button
4. Infotainment system
5. Hazard warning flasher switch
6. Manual climate control system/ Automatic climate control system
7. Passenger’s front air bag
8. Glove box
9. Manual transmission shift lever/ Intelligent variable transmission shift lever
10. Seat warmer
11. Drive mode button
12. Power outlet
13. USB charger
14. Driver’s front air bag
15. Light control/Turn signals
16. Wiper/Washer
1. Door lock/unlock button 2. Outside rearview mirror control switch 3. Central door lock switch 4. Power window switches 5. Power window lock switch 6.
1. Engine coolant reservoir 2. Brake/clutch fluid reservoir 3. Engine air filter 4. Engine oil dipstick 5. Engine oil filler cap 6. Windshield washer fluid reservoir 7.
