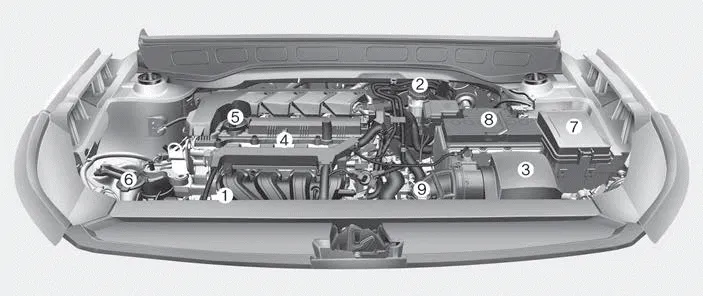

1. Engine coolant reservoir
2. Brake/clutch fluid reservoir
3. Engine air filter
4. Engine oil dipstick
5. Engine oil filler cap
6. Windshield washer fluid reservoir
7. Engine room junction block
8. Battery
9. Radiator cap
1. Instrument cluster 2. Horn 3. Key ignition switch/ Engine Start/Stop button 4. Infotainment system 5. Hazard warning flasher switch 6. Manual climate control system/ Automatic climate control system 7.
Dimensions Engine Bulb Wattage
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the temperature control actuator connector. 3. Verify that the temperature control actuator operates to the cool position when connecting 12V to terminal 3 and grounding terminal 7.
