Hyundai Venue (QX): If you Have a Flat Tire (With spare tire) / Jack and Tools
(1) Jack handle
(2) Jack
(3) Wheel lug nut wrench
(4) Towing hook
The jack, jack handle, and wheel lug nut wrench are stored in the luggage compartment under the luggage box cover.
The jack is provided for emergency tire changing only.

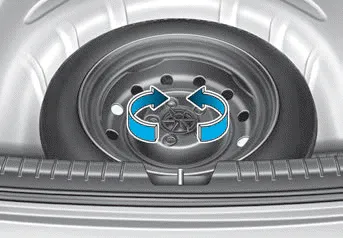

Turn the winged hold down bolt counterclockwise to remove the spare tire.
Store the spare tire in the same compartment by turning the winged hold down bolt clockwise.
To prevent the spare tire and tools from “rattling”, store them in their proper location.
If it is hard to loosen the tire hold-down wing bolt by hand, you can loosen it easily using the jack handle.

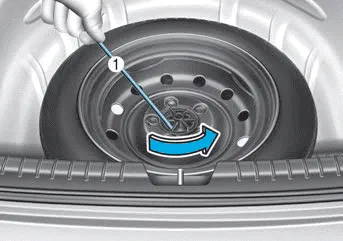

1. Put the jack handle (1) inside of the tire hold-down wing bolt.
2. Turn the tire hold-down wing bolt counterclockwise with the jack handle.
WARNING Changing a tire can be dangerous. Follow the instructions in this section when changing a tire to reduce the risk of serious injury or death.
WARNING A vehicle can slip or roll off of a jack causing serious injury or death to you or those nearby. Take the following safety precautions: Never place any portion of your body under a vehicle that is supported by a jack.
