Hyundai Venue (QX): Interior Features / Power Outlet

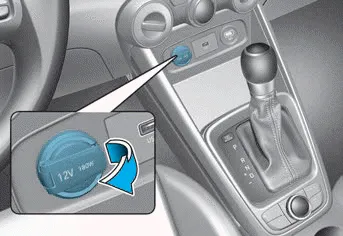

Hyundai Venue. Power Outlet

The power outlet is designed to provide power for mobile telephones or other devices designed to operate with vehicle electrical systems. The devices should draw less than 180 W with the engine running.

WARNING

Avoid electrical shocks. Do not place your fingers or foreign objects (pin, etc.) into a power outlet or touch the power outlet with a wet hand.

NOTICE

To prevent damage to the Power Outlets:

  • Use the power outlet only when the engine is running and remove the accessory plug after use. Using the accessory plug for prolonged periods of time with the engine off could cause the battery to discharge.
  • Only use 12V electric accessories which are less than 180 W in electric capacity.
  • Adjust the air-conditioner or heater to the lowest operating level when using the power outlet.
  • Close the cover when not in use.
  • Some electronic devices can cause electronic interference when plugged into a vehicle’s power outlet. These devices may cause excessive audio static and malfunctions in other electronic systems or devices used in your vehicle.
  • Push the plug in as far as it will go. If good contact is not made, the plug may overheat and the fuse may open.
  • Plug in battery equipped electrical/ electronic devices with reverse current protection. The current from the battery may flow into the vehicle’s electrical/electronic system and cause system malfunction.

    To use the sunvisor, pull it downward. To use the sunvisor to block the sun from the side window, pull it downward, release it from the bracket (1) and swing it to the side (2) towards the window.

    The USB charger is designed to recharge batteries of small size electrical devices using a USB cable. The electrical devices can be recharged when the ignition switch or the Engine Start/Stop button is in the ACC, ON or START position.
