Hyundai Venue: Rear Door / Rear Door Belt Inside Weatherstrip. Repair procedures

Hyundai Venue (QX) (2020-2024) Service Manual / Body (Interior and Exterior) / Rear Door / Rear Door Belt Inside Weatherstrip. Repair procedures

Replacement
1.
Remove the rear door trim.
(Refer to Rear Door - "Rear Door Trim")
2.

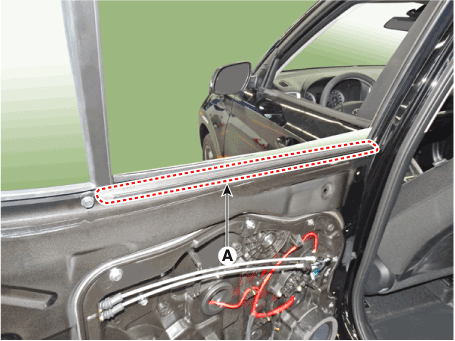

Remove the rear door belt inside weatherstrip (A).

Hyundai Venue. Rear Door Belt Inside Weatherstrip. Repair procedures
3.
To install, reverse removal procedure.
Hyundai Venue. Rear Door Belt Inside Weatherstrip. Repair procedures
•
When installing, install it by first contacting the inside part (basis point of assembly) of arrow to door frame.
