Hyundai Venue: Rear Door / Rear Door Belt Outside Weatherstrip. Repair procedures

Hyundai Venue (QX) (2020-2025) Service Manual / Body (Interior and Exterior) / Rear Door / Rear Door Belt Outside Weatherstrip. Repair procedures

Replacement

1.	Pull down the front door window glass to the lowest level by pressing the power window glass switch.

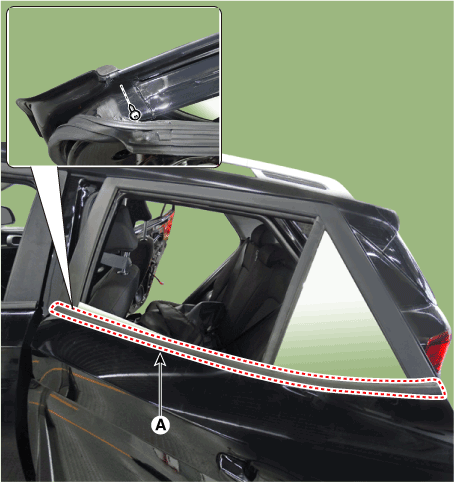

2.	Loosen the mounting screw and remove the rear door belt outside weartherstrip (A).

To install, reverse removal procedure.

•	Replace any damaged clips.
