Hyundai Venue: Front Door / Front Door Inside Handle. Repair procedures

Hyundai Venue (QX) (2020-2022) Service Manual / Body (Interior and Exterior) / Front Door / Front Door Inside Handle. Repair procedures

Removal
1.
Remove the front door trim.
(Refer to Front Door - "Front Door Trim")
2.

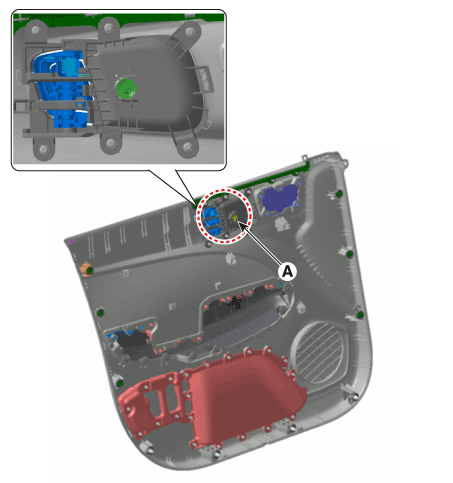

Cut the heat welds with a knife and remove the front door inside handle (A).

Hyundai Venue. Front Door Inside Handle. Repair procedures

Hyundai Venue. Front Door Inside Handle. Repair procedures

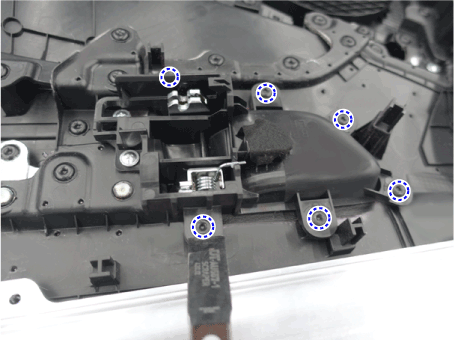

Cut the heat welds with a knife, paying attention to damage.

Hyundai Venue. Front Door Inside Handle. Repair procedures

Installation
1.
Refit the front door interior handle.
2.

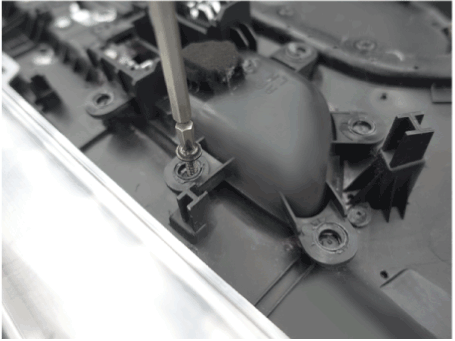

Refit the screws on the heat welds.
Hyundai Venue. Front Door Inside Handle. Repair procedures
Since there is no groove to mount the screw, place the screw driver in a straight line and install it.

Hyundai Venue. Front Door Inside Handle. Repair procedures
