Inspection
Rear Wiper Motor
1.
Remove the connector from the rear wiper motor.
2.

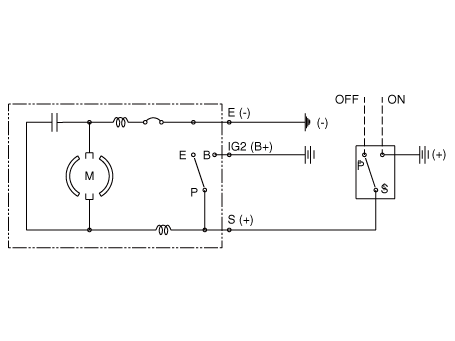

Connect battery positive (+) and negative (-) cables to terminals 2 and 1 respectively.
3.
Check that the motor operates normally. Replace the motor if it operates abnormally.
No
Description
1
Rear Wiper (+)
2
GND
3
-
4
IGN 2

Hyundai Venue. Rear Wiper Motor. Repair procedures

Hyundai Venue. Rear Wiper Motor. Repair procedures

Removal
1.
Disconnect the negative (-) battery terminal.
2.

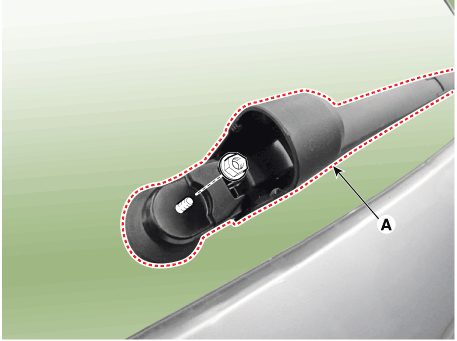

Remove the rear wiper arm & blade (A) after removing rear wiper nut.

Hyundai Venue. Rear Wiper Motor. Repair procedures

3.
Remove the tailgate trim.
(Refer to Body - "Tailgate Trim")
4.

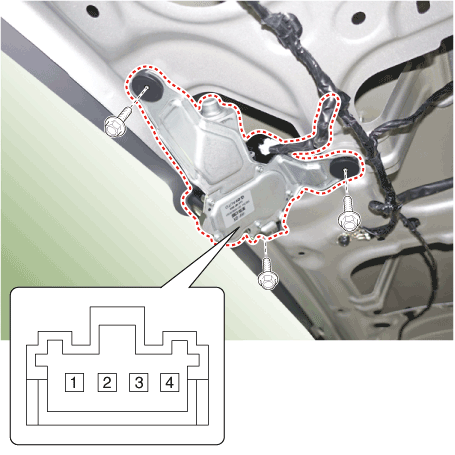

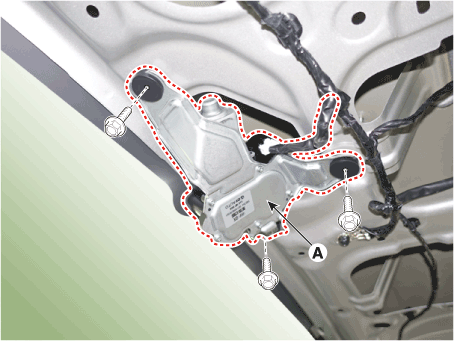

Disconnect the motor connector and then remove the rear wiper motor (A)

Hyundai Venue. Rear Wiper Motor. Repair procedures

Installation
1.
Install the rear wiper motor assembly.
Tightening torque Nut :
6.9 - 10.8 Nm (0.7 - 1.1 kgf.m, 5.0 - 7.9 lb-ft)
2.
Install the tailgate trim.
3.
Install the rear wiper arm cap after tighting the nut.
Tightening torque Bolt :
8.8 - 12.7 N.m (0.9 - 1.3 kgf.m, 6.5 - 9.4 Ib-ft)
4.

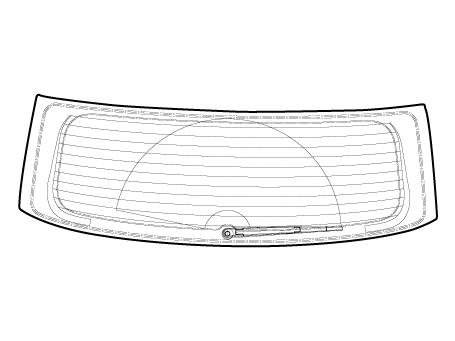

Set the rear wiper blade and to the lowest defogger heat line and tailgate glass.

Hyundai Venue. Rear Wiper Motor. Repair procedures

    Components and components location

    Component Location 1. Rear wiper arm nut 2. Rear wiper arm & blade 3. Rear wiper motor assembly 3. Rear wiper motor assembly nut 5...
