Hyundai Venue: Rear Combination Lamp / Repair procedures

Hyundai Venue (QX) (2020-2022) Service Manual / Body Electrical System / Rear Combination Lamp / Repair procedures

Removal
Outside Combination Lamp
1.
Disconnect the negative (-) battery terminal.

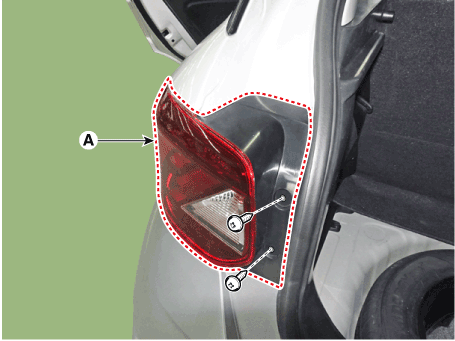

2.
Loose the screws and then remove the outside rear combination lamp (A).

Hyundai Venue. Repair procedures

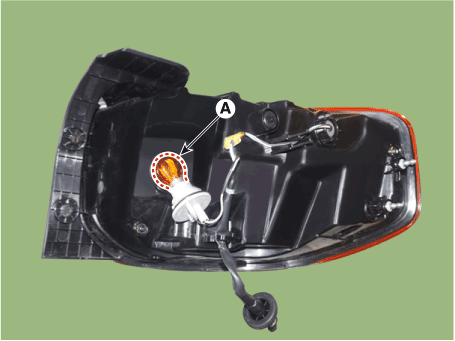

3.
Replace the turnsignal lamp bulb (A) after turning the bulb socket counterclockwise.

Hyundai Venue. Repair procedures

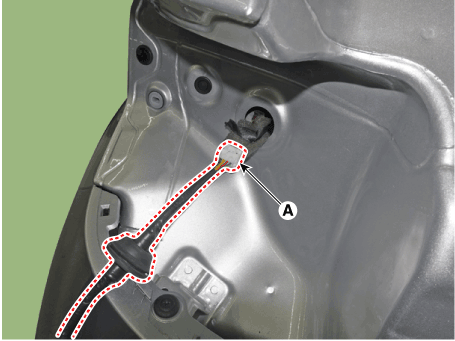

4.
Disconnect the rear combination lamp connector (A).

Hyundai Venue. Repair procedures

Installation
1.
Install the rear combination lamp assembly after assembling the bulb.
2.
Connecting the lamp connector.
3.
Install the rear combination lamp assembly.
