Hyundai Venue: Ignition Switch Assembly / Repair procedures

Hyundai Venue (QX) (2020-2022) Service Manual / Body Electrical System / Ignition Switch Assembly / Repair procedures

Inspection
1.

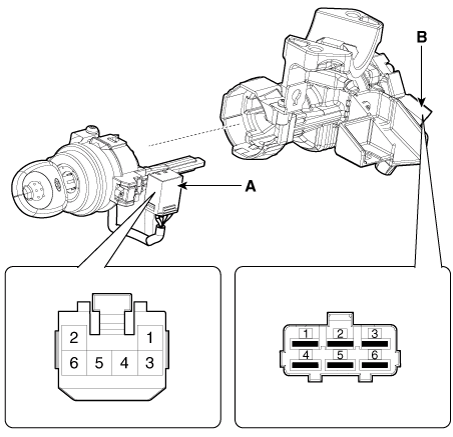

Disconnect the ignition switch connector (B) and key warning switch connector (A) from under the steering column.

Hyundai Venue. Repair procedures

2.

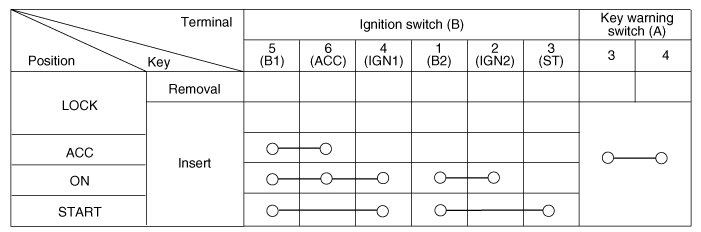

Check for continuity between the terminals.
3.
If continuity is not specified, replace the switch.

Hyundai Venue. Repair procedures

Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the crash pad lower panel.
(Refer to Body - "Crash Pad Lower Panel")
3.
Remove the steering column upper and lower shrouds.
(Refer to Body - "Steering Column Shroud Panel")
4.

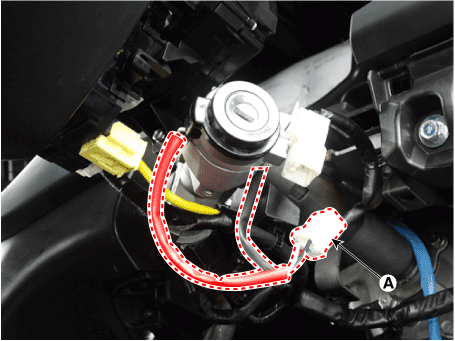

Disconnect the key warning/immobilizer connector (A).

Hyundai Venue. Repair procedures

5.
Insert key and turn it to ACC position.
6.

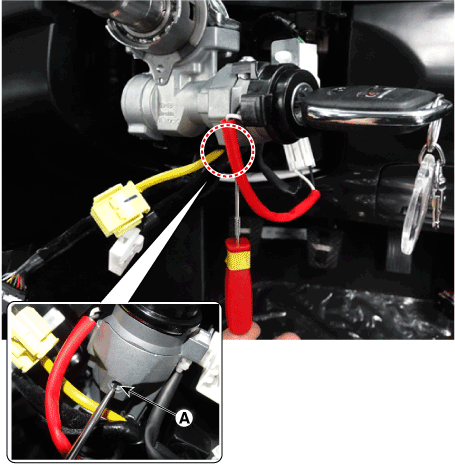

Pushing lock pin (A) with the awl.

Hyundai Venue. Repair procedures

7.

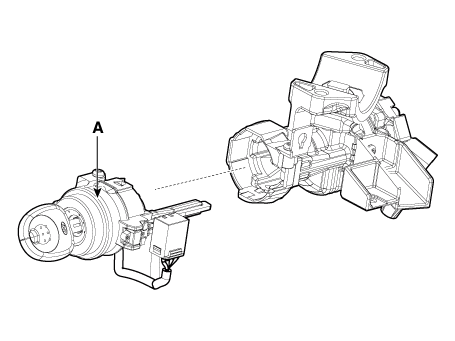

Remove the immobilizer coil antenna (A) after loosening the mounting screw.

Hyundai Venue. Repair procedures

Installation
1.
Install the key lock cylinder.
2.
Install the key warning and immobilizer connector.
3.
Install the ignition switch.
4.
Install the steering column shrouds and crash pad lower panel.
