Hyundai Venue: Lighting System / Rheostat. Repair procedures

Hyundai Venue (QX) (2020-2025) Service Manual / Body Electrical System / Lighting System / Rheostat. Repair procedures

Inspection
1.
Disconnect the negative (-) battery terminal.
2.
Remove the crash pad lower panel (A).
(Refer to Body - "Crash Pad Lower Panel")
3.
Remove the crash pad lower switch (A).

Hyundai Venue. Rheostat. Repair procedures

4.
Disconnect the rheostat switch connector (A).

Hyundai Venue. Rheostat. Repair procedures

5.

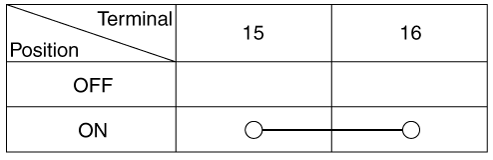

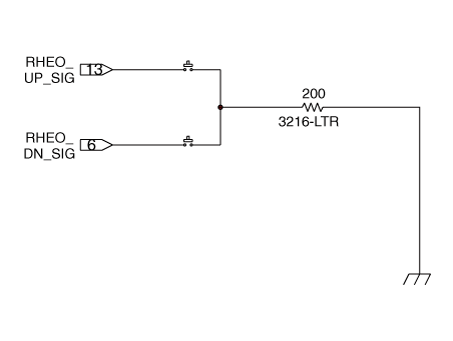

Operate the leveling switch, then check for continuity between terminals of rheostat switch connector.

Hyundai Venue. Rheostat. Repair procedures

Hyundai Venue. Rheostat. Repair procedures

    Rheostat. Components and components location

    ..

    License Lamps

    ..
