Hyundai Venue: Body Side Molding / Quarter Garnish. Repair procedures

Hyundai Venue (QX) (2020-2025) Service Manual / Body (Interior and Exterior) / Body Side Molding / Quarter Garnish. Repair procedures

Replacement
Hyundai Venue. Quarter Garnish. Repair procedures
Put on gloves to prevent hand injuries.
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Take care not to scratch the body surface.
1.

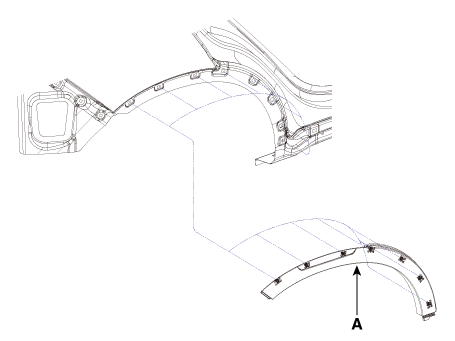

Using a remover and remove the quarter garnish (A).

Hyundai Venue. Quarter Garnish. Repair procedures

2.
To install, reverse removal procedure.
Hyundai Venue. Quarter Garnish. Repair procedures
Replace any damaged clips (or pin-type retainers).
