Hyundai Venue: Crankshaft Position Sensor (CKPS) / Schematic diagrams

Hyundai Venue (QX) (2020-2023) Service Manual / Engine Control / Fuel System / Engine Control System / Crankshaft Position Sensor (CKPS) / Schematic diagrams

Circuit Diagram

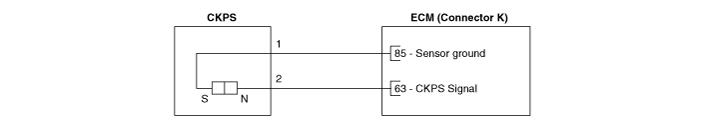

[M/T]

Hyundai Venue. Schematic diagrams

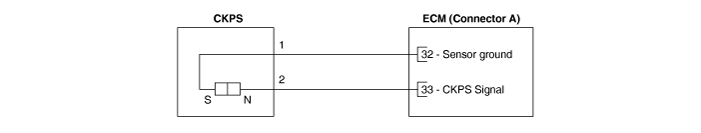

[A/T]

Hyundai Venue. Schematic diagrams

Harness Connector

Hyundai Venue. Schematic diagrams

    Troubleshooting

    ..

    Repair procedures

    Inspection Wave Form 1. Check signal waveform of CKPS and CMPS using a diagnostic tool. Specification : Refer to "DTC Guide" Coil Resistance 1...
