Inspection
Wave Form
1.
Check signal waveform of CKPS and CMPS using a diagnostic tool.
Specification : Refer to "DTC Guide"
Coil Resistance
1.
Turn the ignition switch OFF.
2.
Disconnect the knock sensor connector.
3.
Measure resistance between the CKPS terminals 1 and 2.
4.
Check that the resistance is within the specification.
Specification : 774 - 946Ω [20°C (68°F)]
Removal
1.
Turn ignition switch OFF and disconnect the battery negative (-) terminal.
2.
Lift the vehicle.
3.

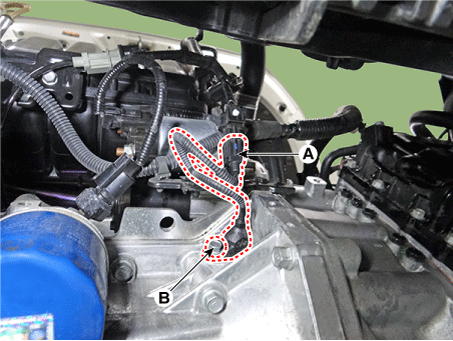

Disconnect the crankshaft position sensor connector (A).
4.
Remove the CKP sensor after removing the installation bolt (B).
Crankshaft position sensor installation bolt :
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

Hyundai Venue. Repair procedures

Installation
Hyundai Venue. Repair procedures
Install the component with the specified torques.
Note that internal damage may occur when the component is dropped. In this case, use it after inspecting.
Hyundai Venue. Repair procedures
Apply the engine oil to the O-ring.
Insert the sensor in the installation hole and be careful not to damage when installation.
Hyundai Venue. Repair procedures
Be careful not to damage the sensor housing and the connector.
Be careful not to damage the O-ring.
1.
Install in the reverse order of removal.
