Inspection
Front Seat Heater
1.

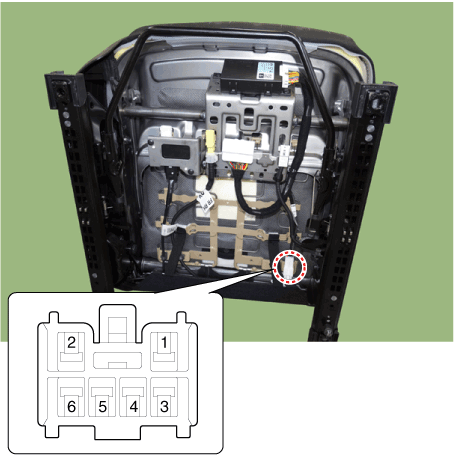

Check for continuity and measure the resistance between terminals No 3 and No 6.
Standard value
Driver / Assists (cushion + back) :
Seat Back : 3.13Ω ± 10%
Seat Cushion : 1.17Ω ± 10%

Hyundai Venue. Seat Heater. Repair procedures

No
Description
1
-
2
-
3
Heater power
4
NTC (+)
5
NTC (-)
6
GND

2.
Operate the seat heater after connecting the connector, and then check the thermostat by measuring the temperature of seat surface.
Standard value
1st : cushion : 36±2°C, back : 40±2°C
2st : cushion : 39±2°C, back : 45±2°C
3st : cushion : 42±2°C, back : 50±2°C
Removal
[Drive / Passenger Seat Heater Unit]
1.
Remove the passenger seat.
(Refer to Body - "Front Seat Assembly")
2.

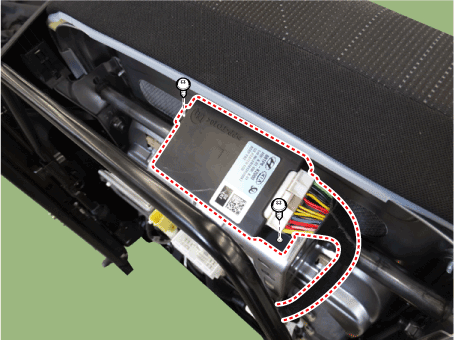

Disconnect the connector (A) and then remove the seat heater unit (B).

Hyundai Venue. Seat Heater. Repair procedures

[Seat Heater Pad]
1.
Remove the passenger seat.
(Refer to Body - "Front Seat Assembly")
2.
Remove the front seat cushion/ back cover.
(Refer to Body - "Front Seat Back Cover")
(Refer to Body - "Front Seat Cushion Cover")
3.
Disconnect the heater pad from front seat cushion/back.

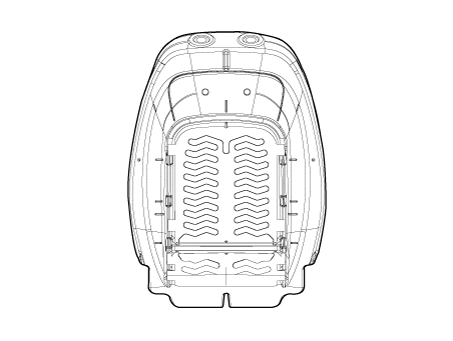

[Cushion]

Hyundai Venue. Seat Heater. Repair procedures

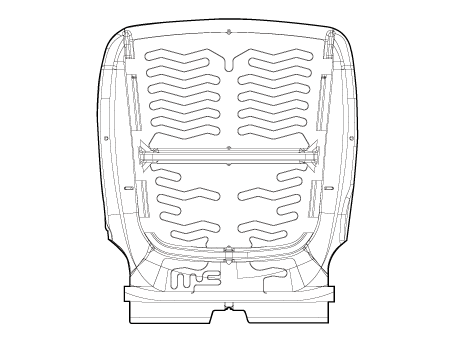

[Back]

Hyundai Venue. Seat Heater. Repair procedures

Installation
[Drive / Passenger Seat Heater Unit]
1.
Install the seat heater unit.
2.
Install the passenger seat assembly.
[Seat Heater Pad]
1.
Install the seat cushion/back heater pad.
2.
Install the seat cushion/back cover.
3.
Install the front seat assembly.
