Hyundai Venue: Tire Pressure Monitoring System / TPMS Receiver. Repair procedures

Hyundai Venue (QX) (2020-2022) Service Manual / Suspension System / Tire Pressure Monitoring System / TPMS Receiver. Repair procedures

Replacement
[TPMS Receiver (Integrated Body Control Unit (IBU))]
1.
Turn the ignition switch OFF and disconnect the battery negative (-) cable.
2.
Remove the glove box.
(Refer to Body - "Glove Box Housing")
3.

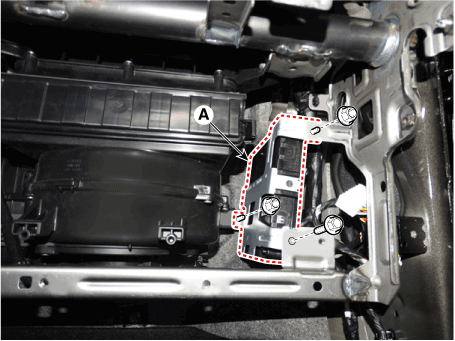

Remove the IBU (A) after loosening the bolt and nut.

Hyundai Venue. TPMS Receiver. Repair procedures

4.

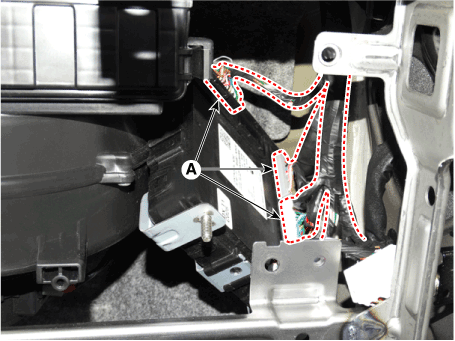

Disconnect the IBU connector (A).

Hyundai Venue. TPMS Receiver. Repair procedures

Diagnosis procedure by using diagnostic device
The main contents of diagnostic method using diagnostic device are as follows:
1.
Connect self-diagnosis connector (16 pins) located in the lower driver side crash pad to self-diagnosis device, and then turn on the self-diagnosis device after key is ON.
2.
Select the "vehicle model" and "TPMS" on GDS vehicle selection screen, then select OK.

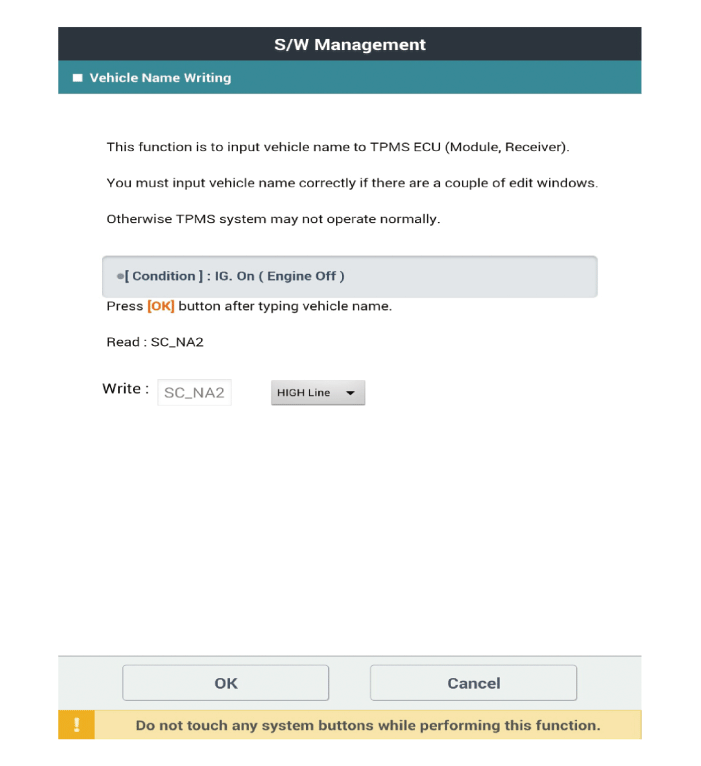

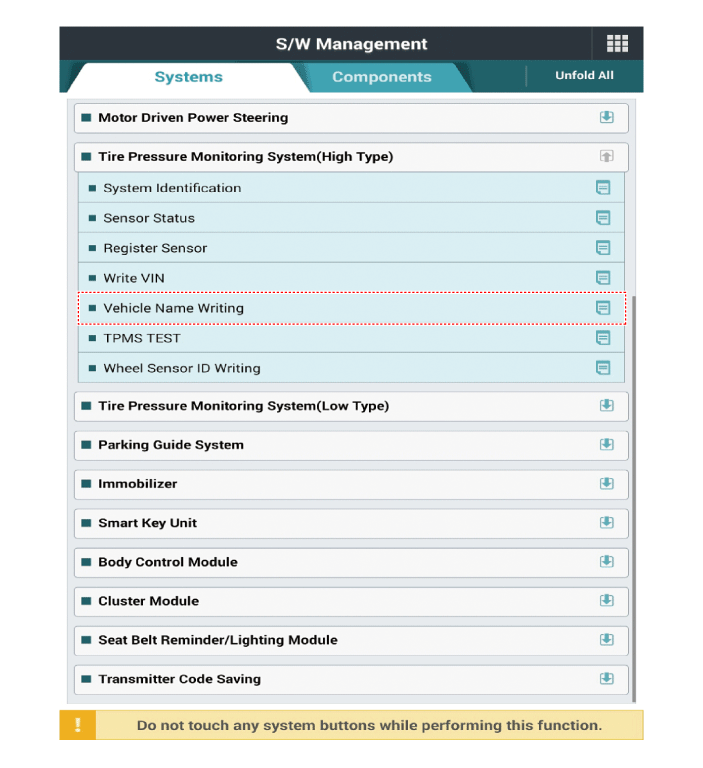

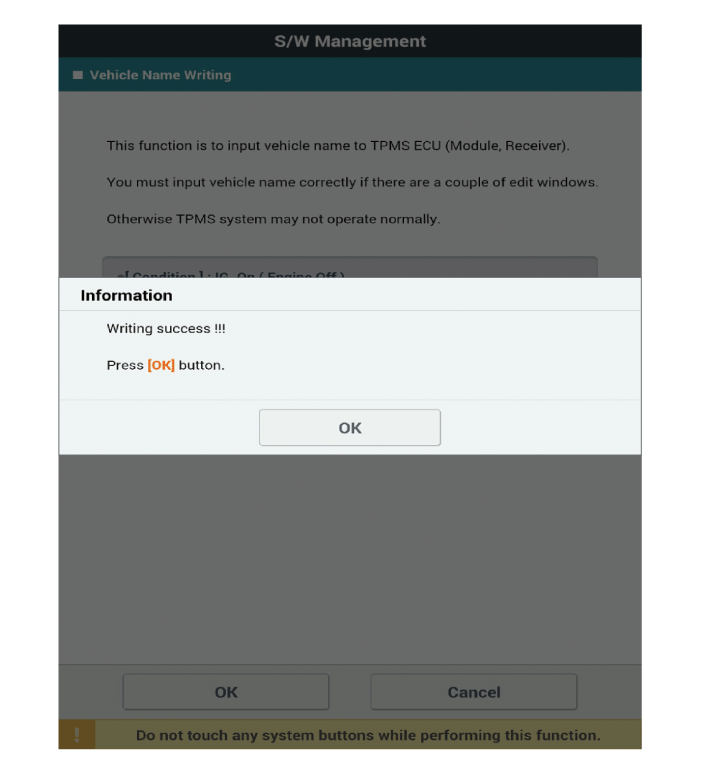

[Vehicle Name Writing Method]

Hyundai Venue. TPMS Receiver. Repair procedures

Hyundai Venue. TPMS Receiver. Repair procedures

Hyundai Venue. TPMS Receiver. Repair procedures

Hyundai Venue. TPMS Receiver. Repair procedures

Hyundai Venue. TPMS Receiver. Repair procedures

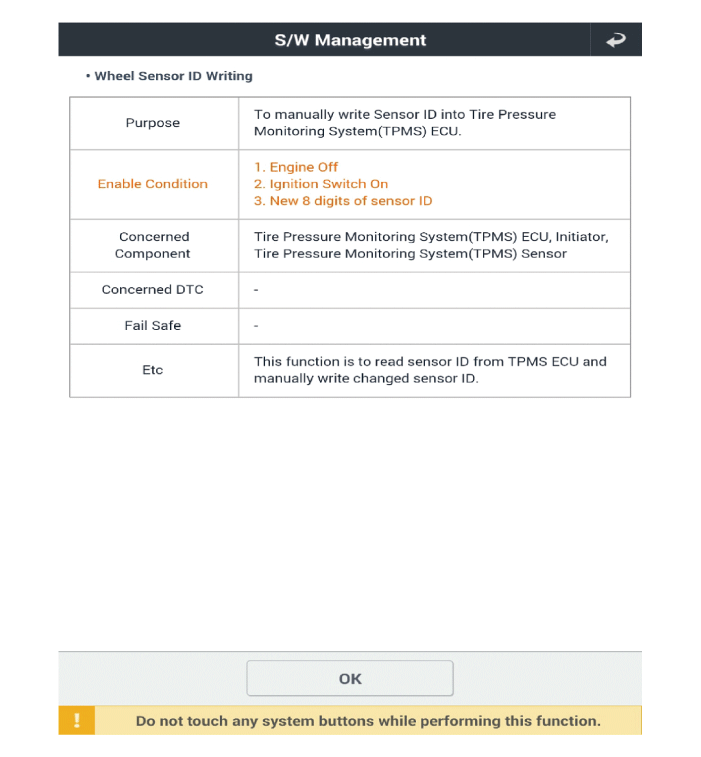

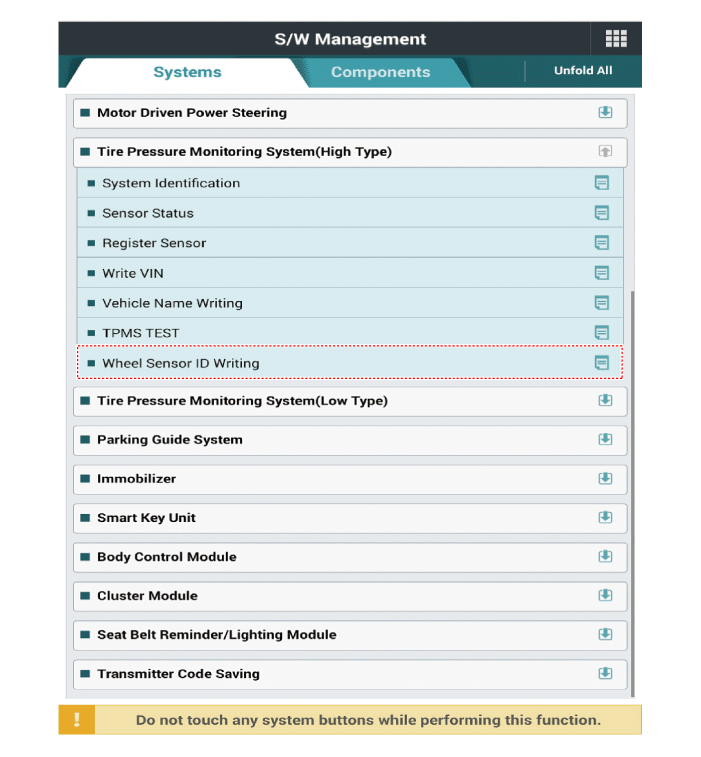

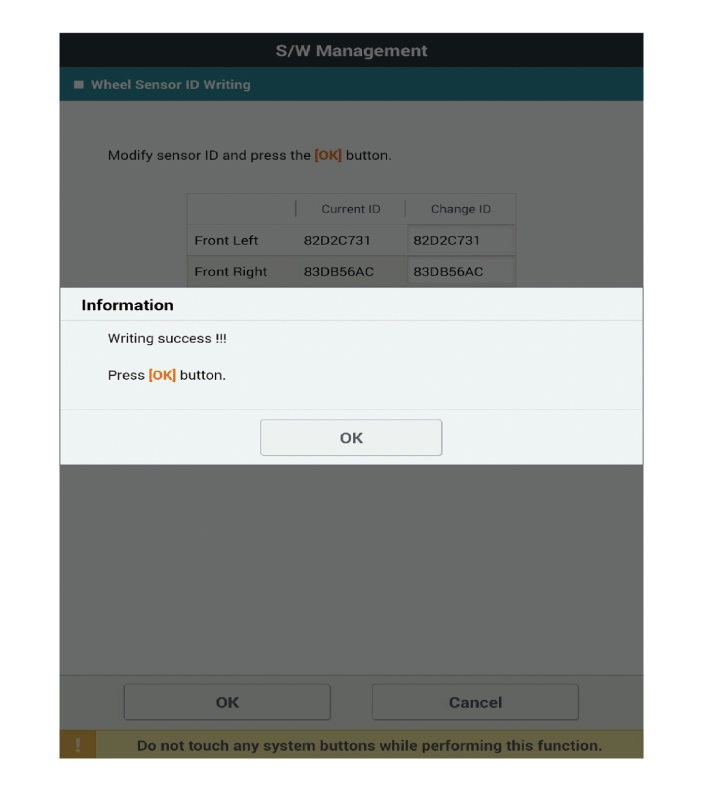

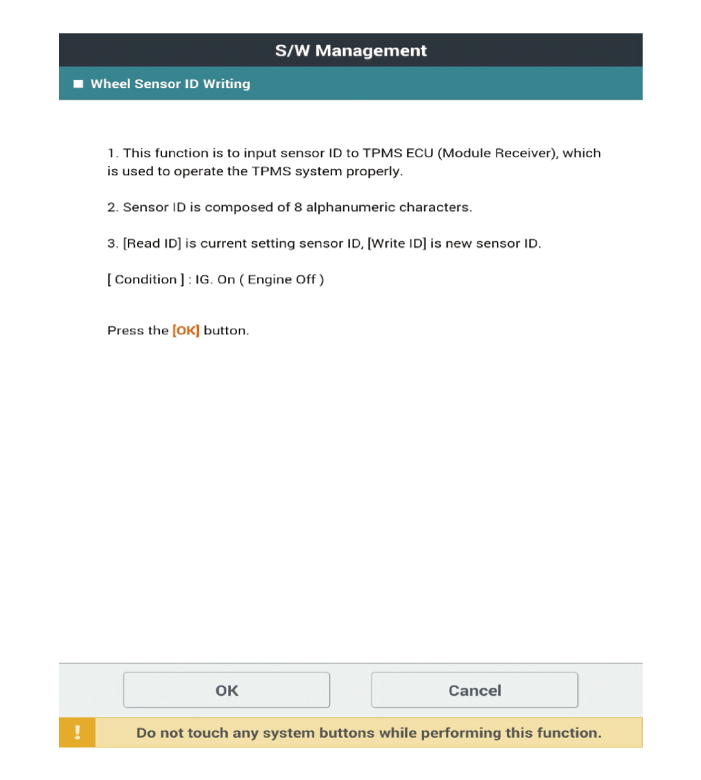

[Wheel Sensor ID Writing Method]

Hyundai Venue. TPMS Receiver. Repair procedures

Hyundai Venue. TPMS Receiver. Repair procedures

Hyundai Venue. TPMS Receiver. Repair procedures

Hyundai Venue. TPMS Receiver. Repair procedures

Hyundai Venue. TPMS Receiver. Repair procedures
