Hyundai Venue: Rear Corner Radar System / Troubleshooting

Hyundai Venue (QX) (2020-2024) Service Manual / Advanced Driver Assistance System (ADAS) / Rear Corner Radar System / Troubleshooting

Diagnosis with Diagnostic tool
1.
In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system (Diagnostic tool).
The diagnostic system (Diagnostic tool) provides the following information.
(1)
Fault Code Searching : Checking failure and code number (DTC)
(2)
Data Analysis : Checking the system input/output data state
(3)
Actuation test : Checking the system operation condition
(4)
S/W Management : Controlling other features including system option setting and zero point adjustment
2.
Connect the cable of Diagnostic tool to the data link connector in driver side crash pad lower panel, and turn on the Diagnostic tool.
3.

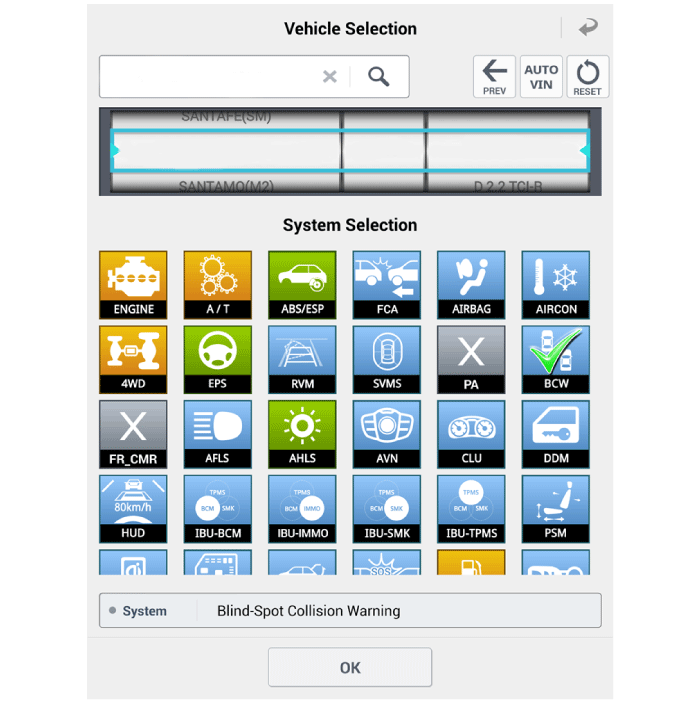

If diagnose the vehicle by Diagnostic tool, select "DTC Analysis" and "Vehicle".

Hyundai Venue. Troubleshooting

4.

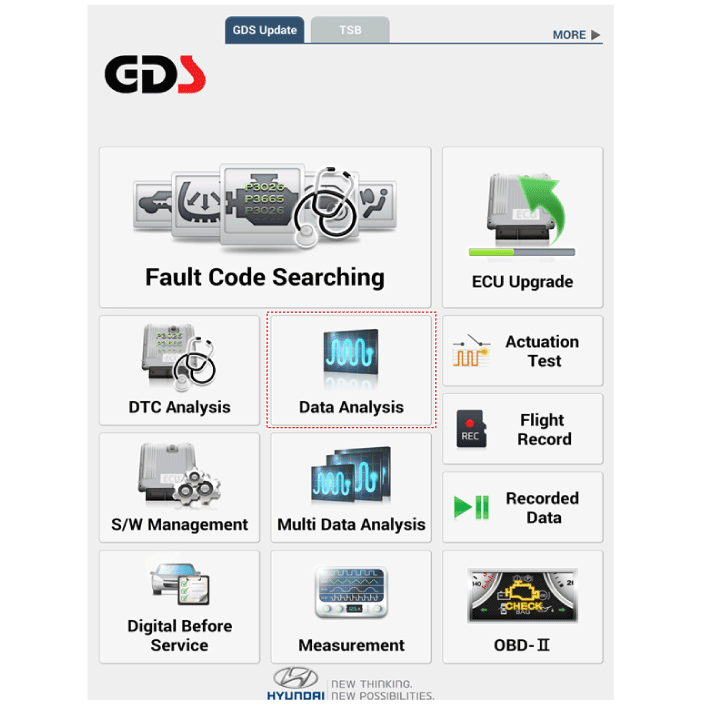

If check current status, select the "Data Analysis" .

Hyundai Venue. Troubleshooting

5.

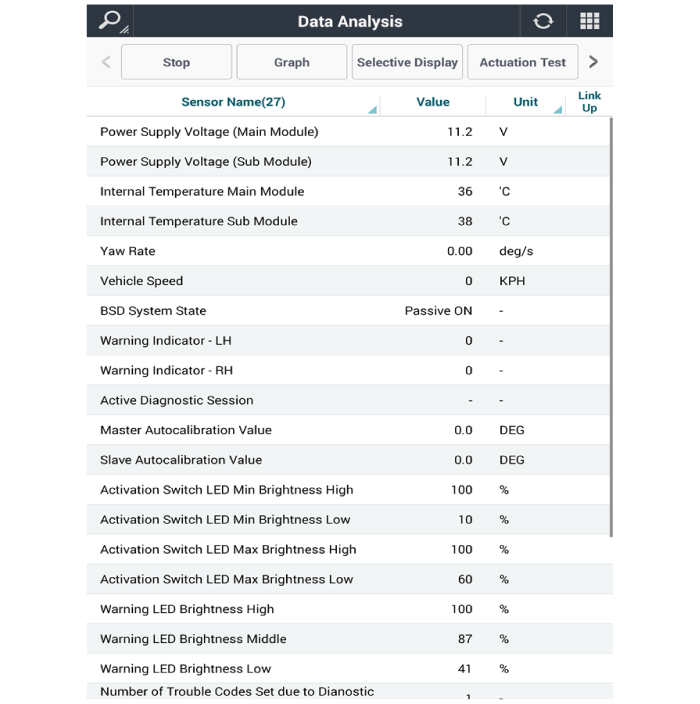

Select "BCW", if you want to check current data of BCW system.

Hyundai Venue. Troubleshooting

Hyundai Venue. Troubleshooting

6.

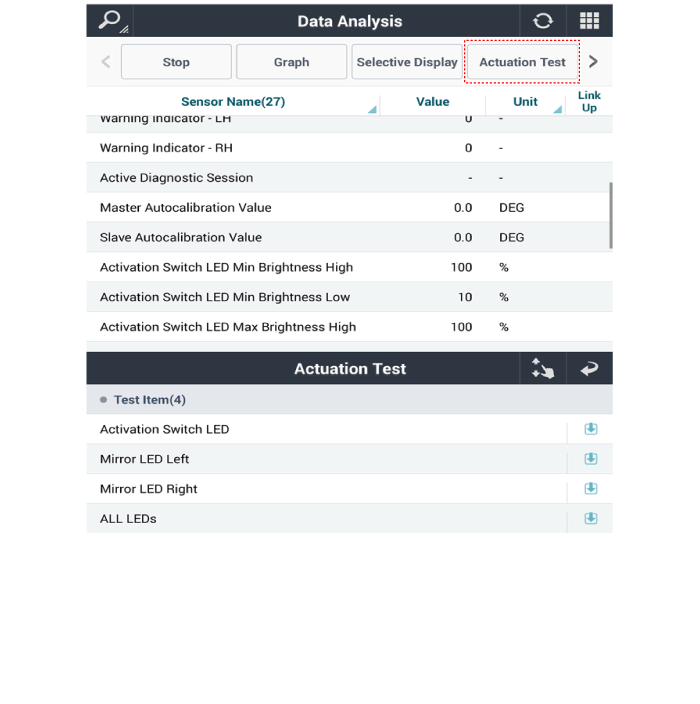

If you want to check each module operation forcefully, select "Actuation test".

Hyundai Venue. Troubleshooting

    Description and operation

    Description Rear Corner Radar is a system that measures the relative speed and distance from the following vehicles by using two electromagnetic wave radar sensors attached to the rear bumper, and detects any vehicle within the blind spot zone and gives off alarm...

    Rear Corner Radar Unit. Specifications

    ..
