Description
Rear Corner Radar is a system that measures the relative speed and distance from the following vehicles by using two electromagnetic wave radar sensors attached to the rear bumper, and detects any vehicle within the blind spot zone and gives off alarm.

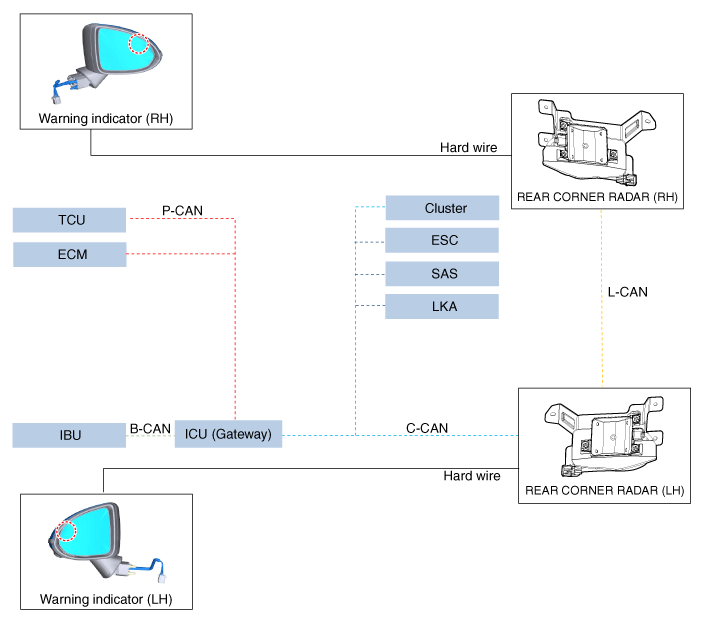

System Interface

Hyundai Venue. Description and operation

System Function

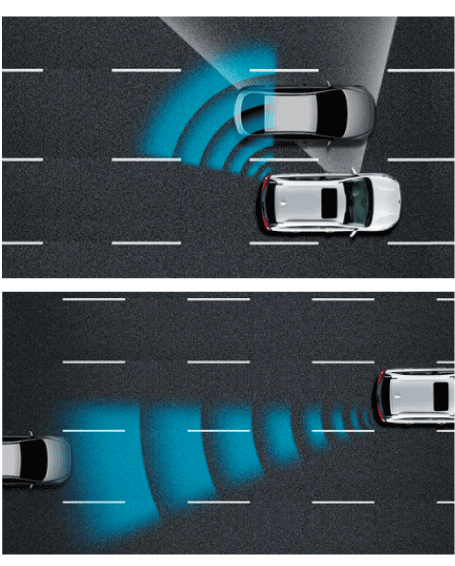

Blind-Spot Collision Warning (BCW)
Audible warning and signal on the mirror when sensing a vehicle in the blind spot area or when the vehicle is approaching at a high speed.

Hyundai Venue. Description and operation

RCCW (Rear Cross-Traffic Collision Warning)
When the vehicle is on the reverse, the RCCW generates alarm to alert another vehicle approaching from the rear and side.

Hyundai Venue. Description and operation

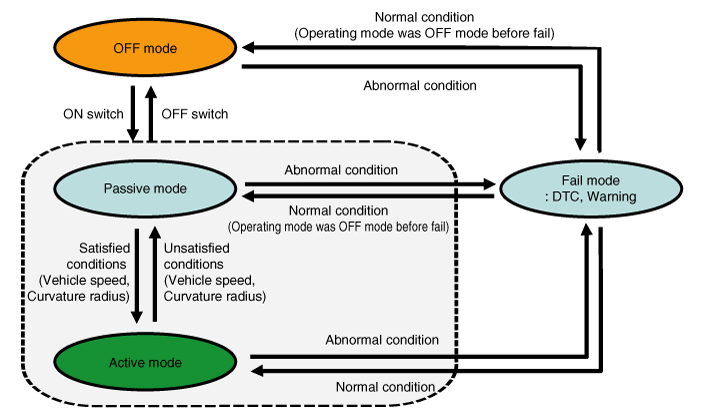

System Operating Mode

Hyundai Venue. Description and operation

Warning Condition

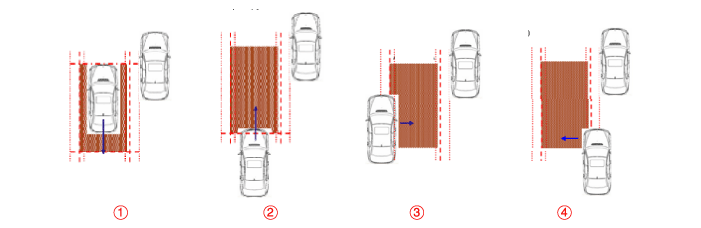

Blind-Spot Collision Warning (BCW)
1.
Conditions for BCW warning ON
① The entire body of the target vehicle is located behind the line A.
② Any part of the target vehicle pass the line B.
③ Any part of the target vehicle passes the line D and Hysteresis In.
④ The entire part of the target vehicle passes the line E and Hysteresis In.

Hyundai Venue. Description and operation

2.

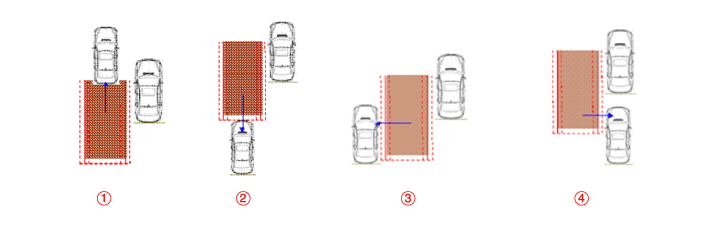

Conditions for BCW warning OFF
① The entire body of the target vehicle moves before the line A.
② The entire body of the target vehicle moves behind the line B.
③ The entire body of the target vehicle passes the line D and Hysteresis Out.
④ The entire part of the target vehicle passes the line E and Hysteresis Out.

Hyundai Venue. Description and operation

3.

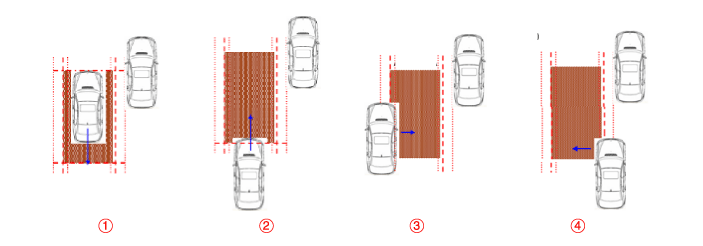

Conditions for LCA warning ON
① The entire body of the target vehicle is located behind the line B.
② Any part of the target vehicle pass the line C.
③ Any part of the target vehicle passes the line D and Hysteresis In.
④ The entire part of the target vehicle passes the line E and Hysteresis In.
⑤ In the all above condition, TTC(Time to Collision) is not less than 4.5 sec.

Hyundai Venue. Description and operation

4.

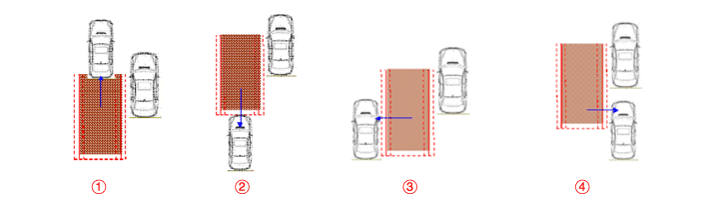

Conditions for LCA warning OFF
① The entire body of the target vehicle is located before the line B.
② The entire body of the target vehicle pass the line C.
③ The entire body of the target vehicle passes the line D and Hysteresis Out.
④ The entire body of the target vehicle passes the line E and Hysteresis Out.
⑤ In the all above condition, TTC(Time to Collision) is more than 4.5 sec.

Hyundai Venue. Description and operation

5.
Sensor activation conditions
① BCW & LCA switch (indicated by the switch LED) is on.
② Vehicle Speed: 30 km/h or faster
③ Curvature radius: 100m or more
④ Relative car speed: -15 - 255km/h
("-" means overtaking the preceding vehicle)
6.
Sensor deactivation conditions
① BCW & LCA switch (indicated by the switch LED) is off.
② Vehicle Speed: 28 km/h or slower
③ Curvature radius: 70m or less
④ Relative car speed: All except -15 - 255km/h
("-" means overtaking the preceding vehicle)
7.
System control prohibition
① The radar is covered by debris: System conditions - Blockage message is outputted
Hyundai Venue. Description and operation
If the sensor on the rear bumper is contaminated by snow, mud or stickers, its detecting performance may be lowered.
② The radar installation is damaged by an outside shock: Send the error code
③ BCW & LCA system fails: Send the error code
④ The radar is overheated: System conditions - Over Temperature message is outputted.
8.
BCA-R (Blind-Spot Collision-Avoidance Assist System - Rear)
Item
Control value
Remarks
Activation speed
60 - 180 km/h
Same front camera operation condition

9.
BCW activation condition
(1)
BCW on/off switch : On (indicated by the switch LED)
(2)
Vehicle Speed : 30 - 255 km/h (20 - 158 mile/h)
(3)
Relative vehicle speed : -10 to 255 km/h (-6 to 158 mile/h)
(Negative value refers to the distance of the vehicle ahead.)
10.
Warning zone
A to B : Blind spot zone
B to C : Closing vehicle zone

Hyundai Venue. Description and operation

Rear Cross-Traffic Collision Warning System (RCCW)
1.
Rear Cross-Traffic Collision Warning System (RCCW) activation condition
Item
Control value
Remarks
Activation speed
0 to -10 km/h (Reverse)
Activate when the gear is shifted to R (Reverse) position
Time To Collision
8 km/h - 60 km/h
+ : closing
Activation distance
0.5m - 25m
Vehicle basis

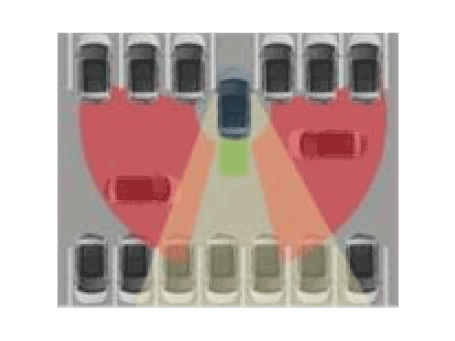

① Generates warning in case of collision risk with the vehicle approaching from left and right side of your vehicle while reversing out of the parking space.
② Based on the Time To Collision (TTC), the warning is generated for the vehicle that is possible to collide within 3.5 seconds.
Hyundai Venue. Description and operation
"Time To Collision (TTC): Time calculated using the relative distance/speed which is the time until the possible collision. (TTC is subject to change depending on the relative speed of the approaching vehicle)."

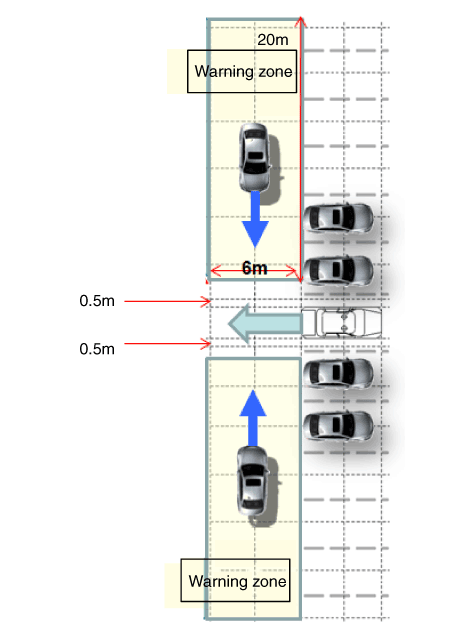

③ Warning zone is as follows:

Hyundai Venue. Description and operation
