Inspection
1.

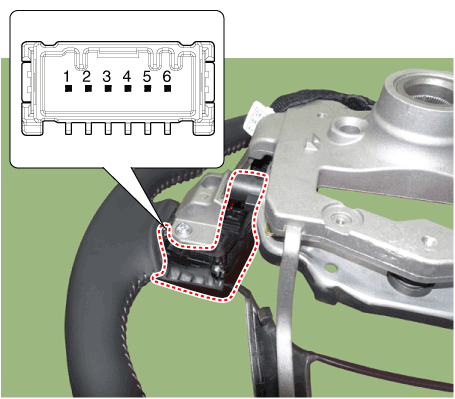

Check for resistance between terminals in each switch position (LH).

Hyundai Venue. Audio Remote Control. Repair procedures

[LH : Audio + Hands free]
Switch
Connector terminal
Resistance
(±5%)
SEEK Up
1 - 6
430Ω
SEEK Down
1.11 kΩ
MODE
2.11 kΩ
MUTE
3.11 kΩ
Volume (+)
4.61 kΩ
Volume (-)
6.81 kΩ
Voice
10.71 kΩ
END
18.91 kΩ
SEND
40.91 kΩ

2.

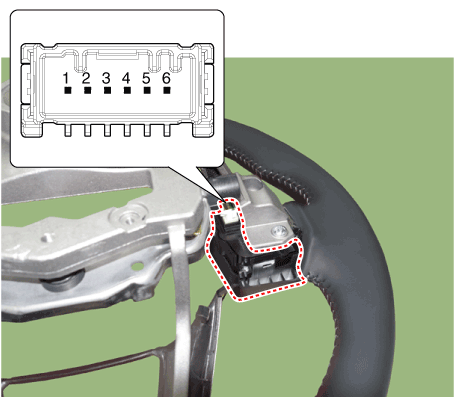

Check for resistance between terminals in each switch position (RH).

Hyundai Venue. Audio Remote Control. Repair procedures

[RH : Trip + Cruise]
Switch
Connector terminal
Resistance(±5%)
Cancel
2 - 6
390 Ω
SET -
2 - 6
610 Ω
RES +
2 - 6
910 Ω
Cruise ON/OFF
2 - 6
1.38 kΩ
Cruise Mode & SLD ON/OFF
2 - 6
2.13 kΩ
Group
2 - 6
390 Ω
Trip Up
2 - 6
610 Ω
Trip Down
2 - 6
910 kΩ
Trip OK
2 - 6
1.38 kΩ

Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the steering wheel assembly.
(Refer to Steering System - "Steering Wheel")
3.

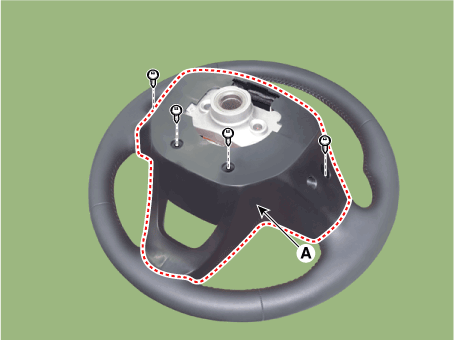

Remove the steering lower cover (A).

Hyundai Venue. Audio Remote Control. Repair procedures

4.

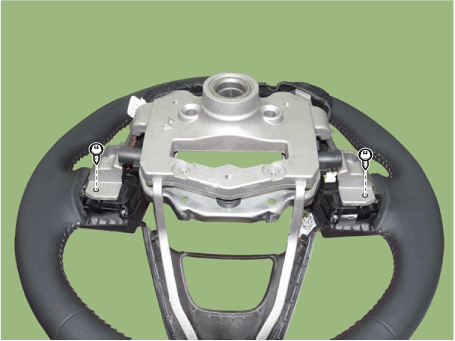

Loosen the steering remote control switch mounting screw.

Hyundai Venue. Audio Remote Control. Repair procedures

5.

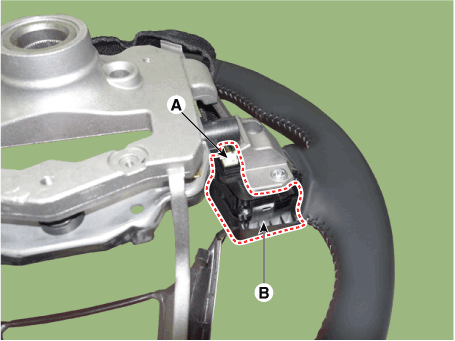

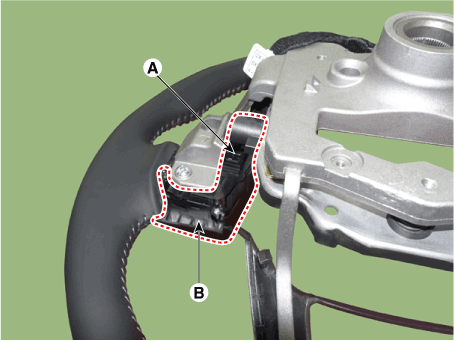

Disconnect the connector (A) and then remove the steering wheel remote control switch (B).
[RH]

Hyundai Venue. Audio Remote Control. Repair procedures

[LH]

Hyundai Venue. Audio Remote Control. Repair procedures

Installation
1.
Install the steering wheel remote control after connecting the connector.
2.
Connect the negative (-) battery terminal.

    Audio Remote Control. Schematic diagrams

    ..

    USB jack. Schematic diagrams

    ..
