Hyundai Venue: Audio / Audio Unit. Repair procedures

Hyundai Venue (QX) (2020-2024) Service Manual / Body Electrical System / Audio / Audio Unit. Repair procedures

Disconnect the negative (-) battery terminal.
Remove the center fascia panel.
(Refer to Body - "Crash Pad")

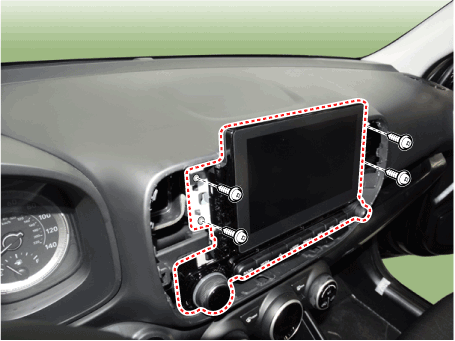

Seperate the audio head unit from crash pad after loosening the screws (4EA).

Hyundai Venue. Audio Unit. Repair procedures

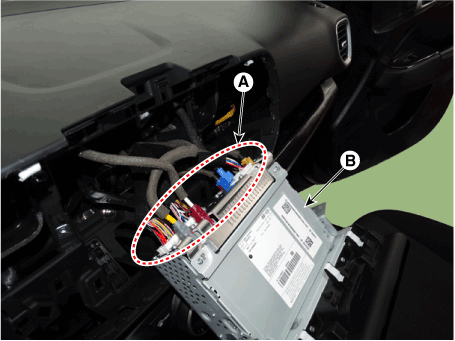

Remove the audio head unit (B) after disconnecting the connectors and cable (A).

Hyundai Venue. Audio Unit. Repair procedures

Connect the audio unit connectors and cable.
Install the audio system.
Install the center fescia panel.
Connect the negative (-) battery terminal.
Hyundai Venue. Audio Unit. Repair procedures
Make sure thet connectors are connected properly.
Check the audio system functionality.

    Audio Unit. Components and components location


    Speakers. Repair procedures

    Inspection 1. Troubleshooting for Speaker (1) Basic inspection of speaker Inspect the sound from speaker after verifying that the speaker mounting screws is removed and the wiring connector is connected precisely to remove vibration transmitted from body trims and surrounding parts...
