Inspection
1.
Troubleshooting for Speaker
(1)
Basic inspection of speaker
Inspect the sound from speaker after verifying that the speaker mounting screws is removed and the wiring connector is connected precisely to remove vibration transmitted from body trims and surrounding parts.

Hyundai Venue. Speakers. Repair procedures

(2)
Case Troubleshooting
No
Case
Inspection/Remedy
1
Trembling sound
1)
Before replacing the speaker, inspect that the mounting screw are installed normally.
2)
After re-installing the speaker, verify that no trembling sound is heard.
3)
When hearing a trembling sound again, replace the speaker with new one.
2
Noise
1)
Check if the wiring connector is connected normally. If not, reconnect the wiring connector.
2)
In case of radio static, check if there is a noise audio.
Hyundai Venue. Speakers. Repair procedures
In case there is only radio static, this causes from poor radio reception. Thus the speaker needs no repair and replacement.
3
Poor working
Inspection of the wiring connection between the battery and the speaker
1)
Before replacing the speaker, inspect the wiring and connections in the speaker circuit.
2)

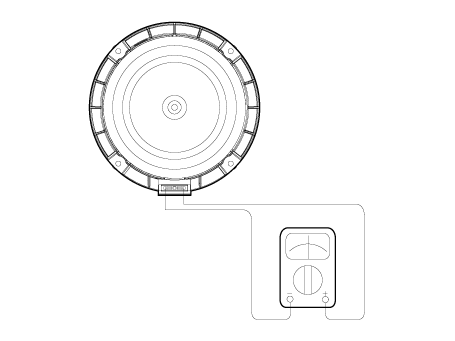

Check the supplying power to the speaker and the resistance, and then inspect the sound quality.

Hyundai Venue. Speakers. Repair procedures

3)
If the speaker works poorly, replace it with new one.

Hyundai Venue. Speakers. Repair procedures

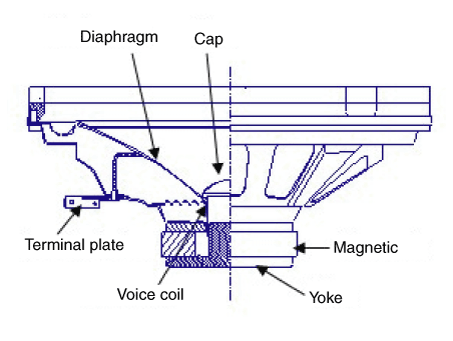

During dealing of speaker
Dropping or rough handling of the speaker can cause damage.
Be careful not to pour water and oil over the speaker.
Caution during dealing of speaker because the material of diaphragm is paper which is easy to be torn by impact and external force.
When modifying audio system as customer pleases, this does electric damage to speaker.
And, in this case the speakers are not covered by the manufacturer's warranty.
Removal
Front Speaker
1.
Remove the front door trim.
(Refer to Body - "Front Door Trim")
2.

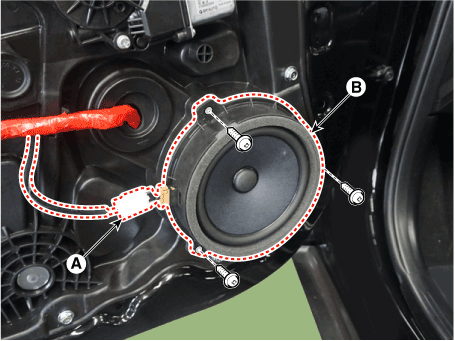

Remove the front door speaker (B) after disconnecting the connector (A) and loosening the screws.

Hyundai Venue. Speakers. Repair procedures

Rear Speaker
1.
Remove the rear door trim.
(Refer to Body - "Rear Door Trim")
2.
Remove the rear door speaker (B) after disconnecting the connector (A) and loosening the screws.

Hyundai Venue. Speakers. Repair procedures

Tweeter Speaker (Front)
1.
Remove the front door trim.
2.

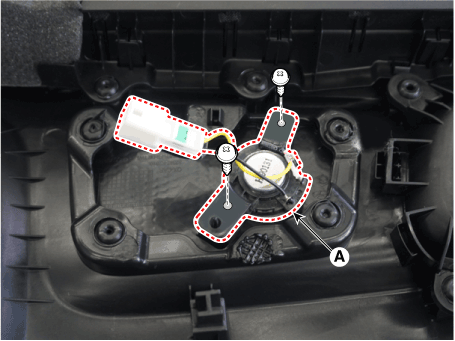

Disconnect the tweeter speaker connector and then remove the tweeter (A) after loosening the screws.

Hyundai Venue. Speakers. Repair procedures

Installation
Front Speaker
1.
Install the front speaker.
2.
Install the front door trim.
Rear Speaker
1.
Install the rear speaker.
2.
Install the rear door trim.
Tweeter Speaker (Front)
1.
Connect the connector.
2.
Install the tweeter speaker and front door trim.
