Inspection
1.

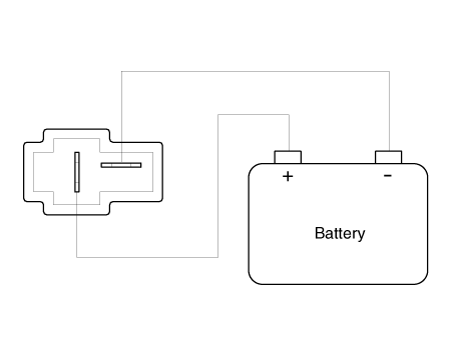

Connect the battery voltage and check the blower motor rotation.

Hyundai Venue. Blower Motor. Repair procedures

2.
If the blower motor does not operate well, substitute with a known-good blower motor and check for proper operation.
3.
Replace the blower motor if it is proved that there is a problem with it.
Replacement
1.
Disconnect the negative (-) battery terminal.
2.

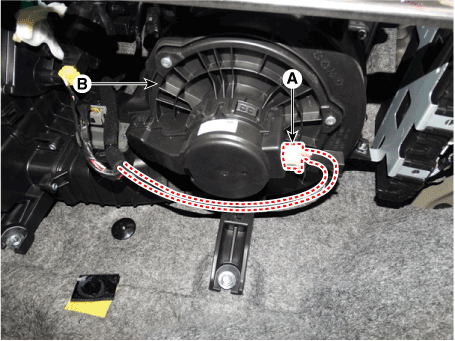

Separate the blower motor connector (A), loosen the mounting screws and remove the blower motor (B).

Hyundai Venue. Blower Motor. Repair procedures

3.
To install, reverse the removal procedure.
