Filter Inspection

The climate control air filter should be replaced according to the Maintenance Schedule. If the vehicle is operated in severely air-polluted cities or on dusty rough roads for a long period, it should be inspected more frequently and replaced earlier. When you replace the climate control air filter, replace it performing the following procedure, and be careful to avoid damaging other components.

Hyundai Venue. Climate Control Air Filter

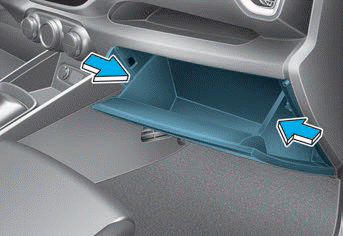

1. With the glove box open, push in both sides of the glove box as shown. This will ensure that the glove box stopper pins will get released from its holding location allowing the glove box to hang.

Hyundai Venue. Climate Control Air Filter

Hyundai Venue. Climate Control Air Filter

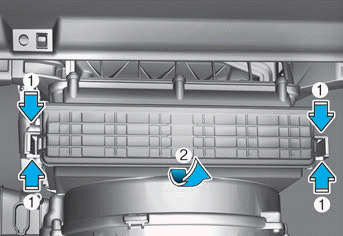

2. Open the climate control air filter cover (2) by pushing or pressing the clip (1) on the right and left side.

Hyundai Venue. Climate Control Air Filter

3. Replace the climate control air filter.

4. Reassemble in the reverse order of disassembly.

NOTICE

Install a new climate control air filter in the correct direction with the arrow symbol (↓) facing downwards, otherwise, it may be noisy and the effectiveness of the filter may be reduced.
