Replacement
1.
Open the glove box.
2.
Press both sides of the glove box (A) and take it out.

Hyundai Venue. Climate Control Air Filter. Repair procedures
3.

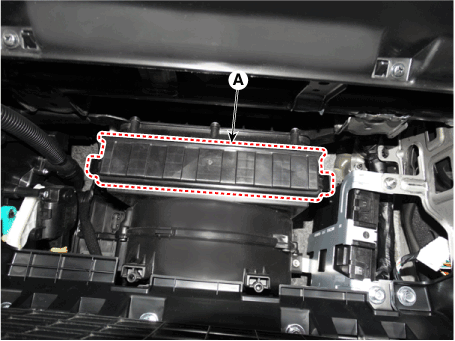

Remove the filter cover (A) by pressing the knob.

Hyundai Venue. Climate Control Air Filter. Repair procedures
4.

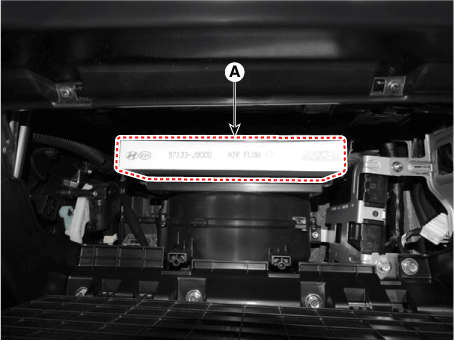

Replace the air filter (A) with a new one according to the direction of air filter.

Hyundai Venue. Climate Control Air Filter. Repair procedures

Hyundai Venue. Climate Control Air Filter. Repair procedures
•
To remove the filter easily, press the right side inward then pull out the filter.
•
In case of driving in an air-polluted area or rugged terrain, check and replace the air filter as frequently as possible.
5.
To install, reverse the removal procedure.

    Description The climate control air filter is located in the blower unit. It eliminates foreign materials and odor. The particle filter performs a role as an odor filter as well as a conventional dust filter to ensure comfortable interior environment.

    Components Location 1. Intake actuator
