Hyundai Venue: Audio / Components and components location

Hyundai Venue (QX) (2020-2024) Service Manual / Body Electrical System / Audio / Components and components location

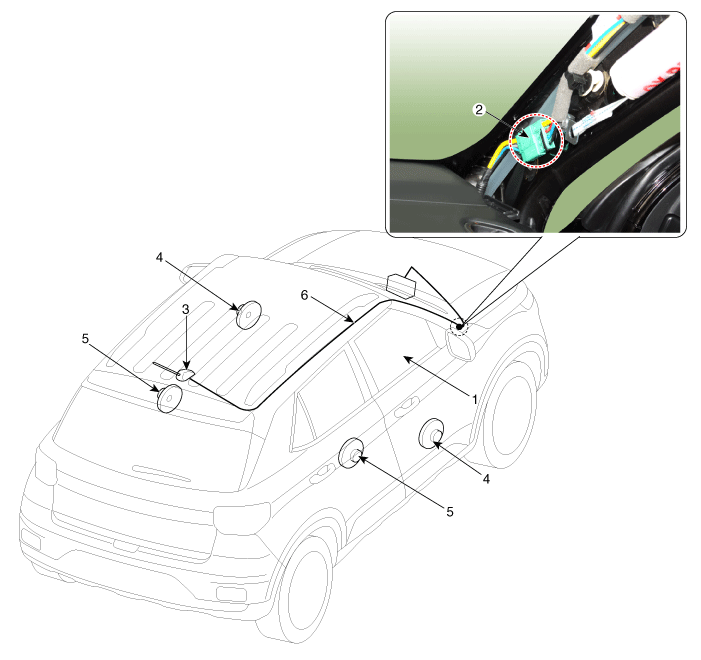

Component Location

Hyundai Venue. Components and components location

1. Audio unit
2. Tweeter speaker
3. Roof antenna (Radio)
4. Front door speaker
5. Rear door speaker
6. Antenna feeder cable
7. Antenna cable connector

    Specifications

    Specifications Audio Item Specification Model Compect Audio Display Audio Power supply DC 14...

    Audio Unit. Components and components location

    ..
