Hyundai Venue: Parking Brake System / Parking Brake Switch. Repair procedures

Hyundai Venue (QX) (2020-2023) Service Manual / Brake System / Parking Brake System / Parking Brake Switch. Repair procedures

Removal
1.
Turn ignition switch OFF and disconnect the negative (-) battery cable.
2.
Release the parking brake.
3.
Remove the floor console assembly.
(Refer to Body - "Floor Console")
4.

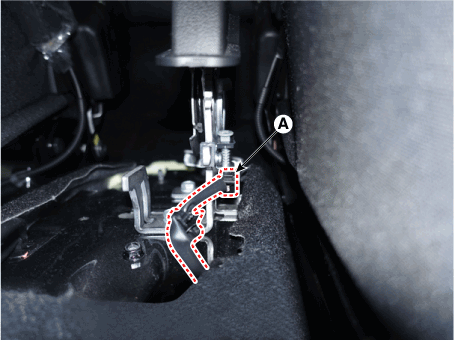

Disconnect the parking brake switch connector (A).

Hyundai Venue. Parking Brake Switch. Repair procedures

5.

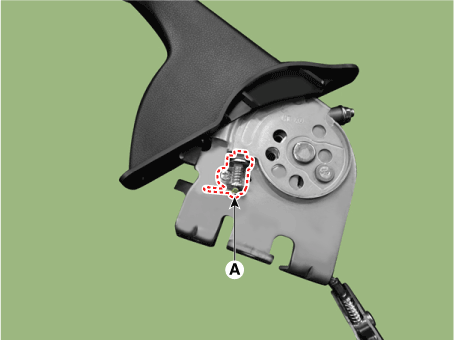

Loosen the screw and then remove the parking brake switch (A).
Tightening torque :
1.96 - 2.94 N.m (0.2 - 0.3 kgf.m, 1.44 - 2.16 lb-ft)

Hyundai Venue. Parking Brake Switch. Repair procedures

Installation
1.
To install, reverse removal procedure.
