Component Location

Hyundai Venue. Components and components location

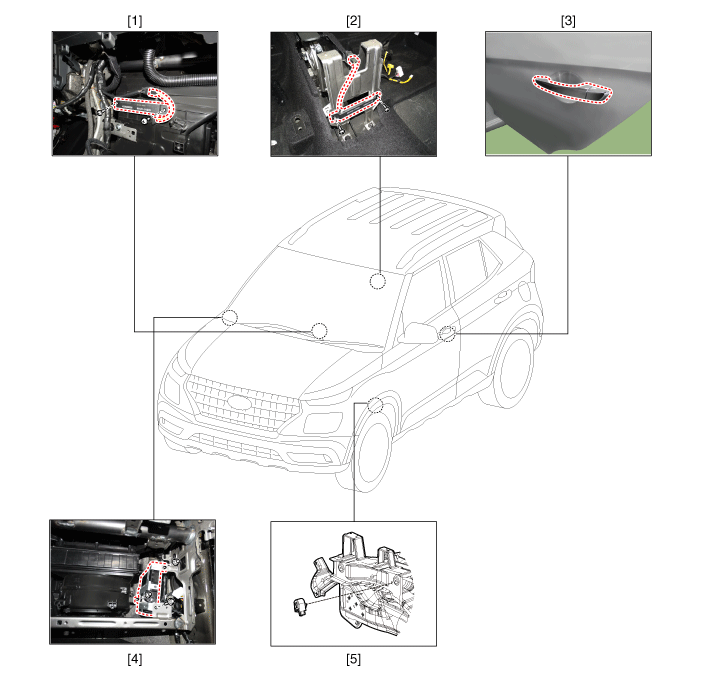

1. Interior antenna 1
2. Interior antenna 2
3. Door outside handle antenna

4. Smart key unit
5. Buzzer

Hyundai Venue. Components and components location

1. Tail gate open switch

2. Bumper antenna

Specifications

Specifications Smart Key Unit (Integrated Body Contorl Unit(IBU)) Items Specification Rated voltage DC 12V Operating voltage DC 9 - 16V Operating temperature -40°F to 185°F (-40°C to 85°C) Load Less than 3...

Description and operation

Description The SMART KEY system is a system that allows the user to access and operate a vehicle in a very convenient way. To access the vehicle, no traditional key or remote control unit is needed...
