Hyundai Venue: Rear Glass Defogger / Components and components location
Hyundai Venue (QX) (2020-2025) Service Manual / Body Electrical System / Rear Glass Defogger / Components and components location

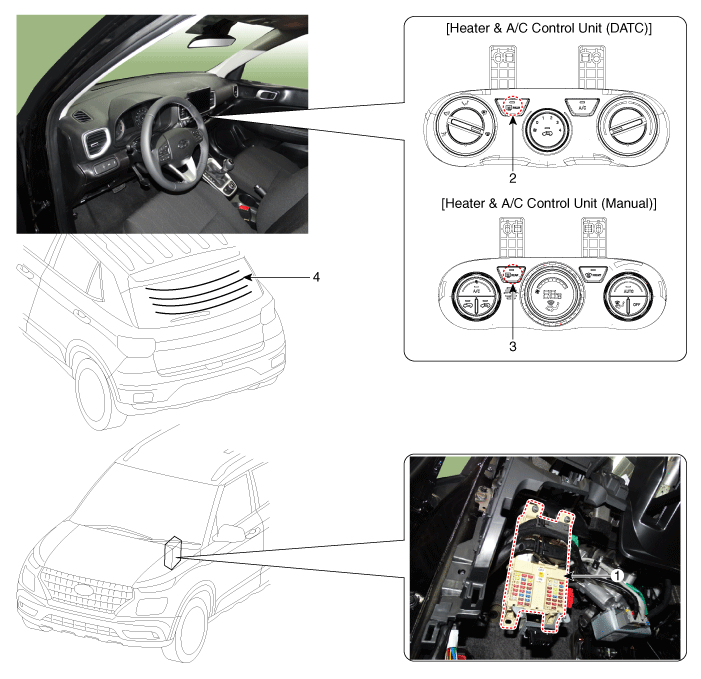

| Component Location |
| 1. ICU Junction Block
2. Rear glass defogger switch (Manual type) |
3. Rear glass defogger
switch (Auto type) 4. Rear glass defogger |
