Hyundai Venue: Stop Lamp Switch / Components and components location

Hyundai Venue (QX) (2020-2024) Service Manual / Brake System / Stop Lamp Switch / Components and components location

Components

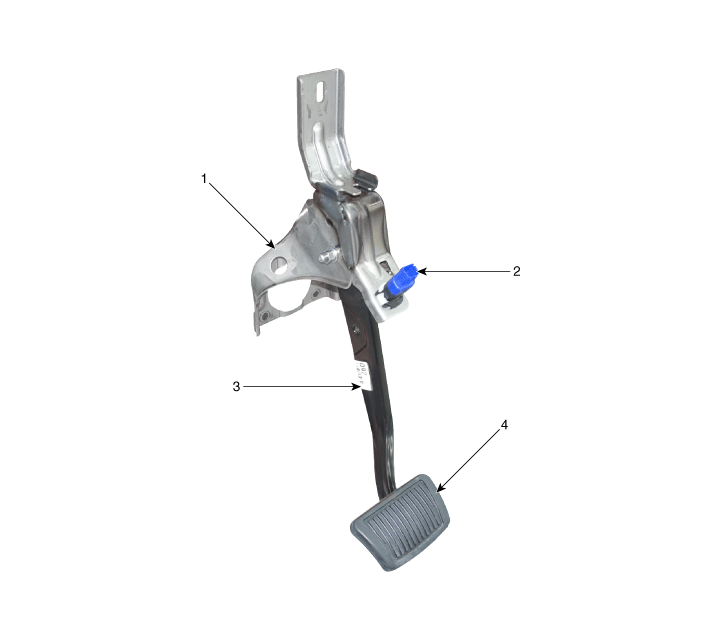

Hyundai Venue. Components and components location

1. Brake member assembly
2. Stop lamp switch
3. Brake pedal arm assembly
4. Brake pedal pad

    Stop Lamp Switch

    ..

    Repair procedures

    Adjustment 1. Turn ignition switch OFF and disconnect the negative (-) battery cable. 2. Remove the lower crash pad...
