Hyundai Venue: Front Door / Components and components location
Hyundai Venue (QX) (2020-2022) Service Manual / Body (Interior and Exterior) / Front Door / Components and components location

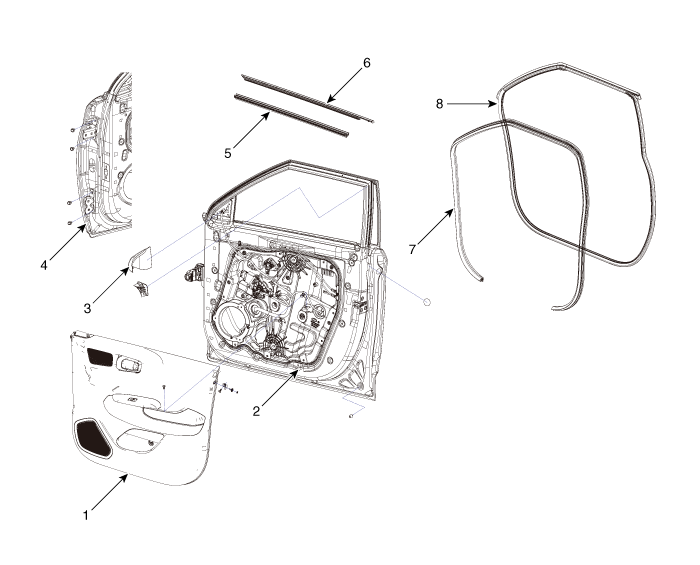

| Components |
| 1. Front door trim 2. Front door module 3. Front door quadrant inner cover 4. Front door hinge |
5. Front door inside weatherstrip 6. Front door outside weatherstrip 7. Front door body side weatherstrip 8. Front door side weatherstrip |
Front Door
..
Repair procedures
Adjustment
Glass Adjustment
•
Check the glass run channel for damage or deterioration, and
replace it if necessary...
