Replacement
1.
If the compressor is marginally operable, run the engine at idle speed, and let the air conditioning work for a few minutes, then shut the engine off.
2.
Disconnect the negative (-) battery terminal.
3.
Recover the refrigerant with a recovery / charging station.
4.
Remove the engine cover.
(Refer to Engine Mechanical Assembly - "Engine Cover")
5.
Remove the cowl top cover.
(Refer to Body - "Cowl Top Cover")
6.

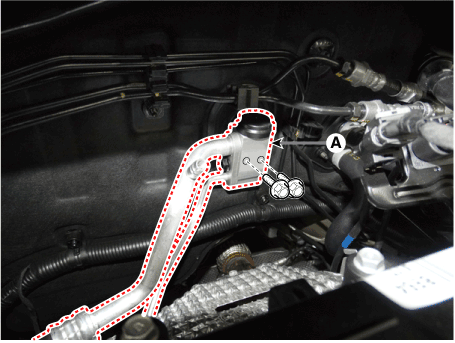

Remove the bolts and the expansion valve (A) from the evaporator core.
Tightening torque :
8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 Ib-ft)
Hyundai Venue. Refrigerant Line. Repair procedures
Immediately after disconnecting the line, protect the system from moisture and dust by plugging or capping.
When refitting, replace the O-ring with a new one.

Hyundai Venue. Refrigerant Line. Repair procedures

7.

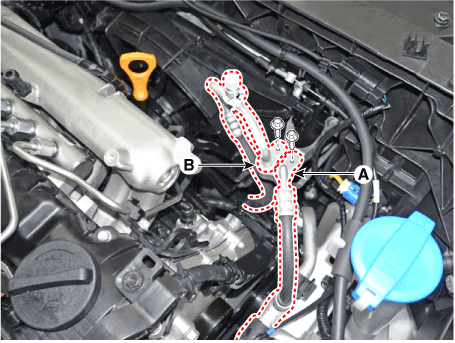

Remove the 2 nuts, and then disconnect the discharge line (B) and liquid line (A) from the condenser.
Tightening torque :
8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 Ib-ft)

Hyundai Venue. Refrigerant Line. Repair procedures

8.

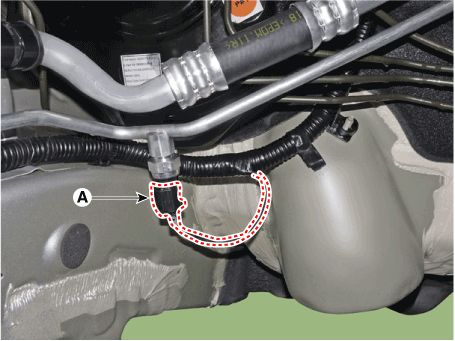

Press the lock pin and separate the A/C pressure transducer connector (A).

Hyundai Venue. Refrigerant Line. Repair procedures

9.

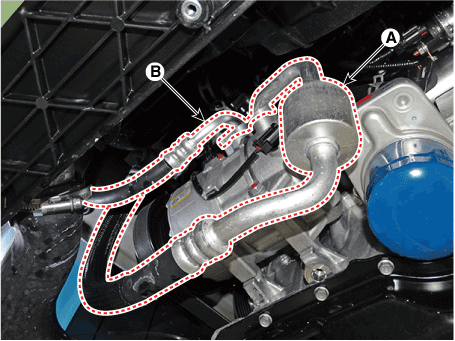

Remove the bolts, then disconnect the suction line (A) and discharge line (B) from the compressor.
Tightening torque :
21.6 - 32.4 N.m (2.2 - 3.3 kgf.m, 15.9 - 23.9 Ib-ft)
Hyundai Venue. Refrigerant Line. Repair procedures
Immediately after disconnecting the line, protect the system from moisture and dust by plugging or capping.

Hyundai Venue. Refrigerant Line. Repair procedures

10.
Loosen the bracket mounting bolt (B) from suction& liquid assembly (A).
Tightening torque :
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 Ib-ft)
11.

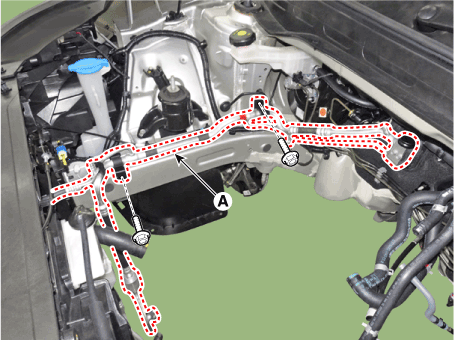

Remove the suction & liquid tube assembly (A) to the upper of engine room.

Hyundai Venue. Refrigerant Line. Repair procedures

12.
To install, reverse the removal procedure.
Hyundai Venue. Refrigerant Line. Repair procedures
Plug or cap the lines immediately after disconnecting them to avoid moisture and dust contamination.
Tighten the bolt or nut joint to the specified torque.
Using a gas leak detector, check for refrigerant leakage.
Evacuate air in the refrigeration system and charge system with refrigerant.
Specified amount
R-134a : 450 ± 25g (15.9 ± 0.88oz.)
R-1234yf : 450 ± 25g (15.9 ± 0.88oz.)
