Description
Automatic transaxle system relies on various measurement data to determine the current control status and extrapolate the necessary compensation values.
These values are used to control the actuators and achieve the desired control output.
If a problem with the drivetrain, including the transaxle, has been identified, perform self-diagnosis and basic transaxle inspection (oil and fluid inspection) and then check the control system's components using the diagnosis tool.

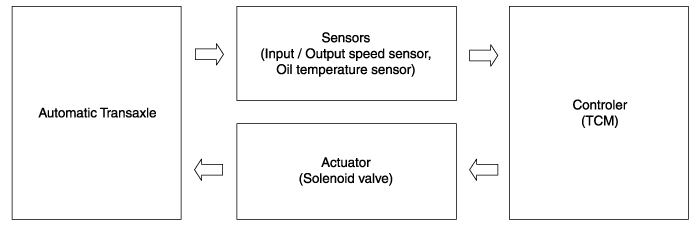

▶ Control System Composition

Hyundai Venue. Description and operation
