Hyundai Venue: Steering wheel / Heated Steering wheel. Schematic diagrams

Hyundai Venue (QX) (2020-2022) Service Manual / Steering System / Steering wheel / Heated Steering wheel. Schematic diagrams

Schematic Digram

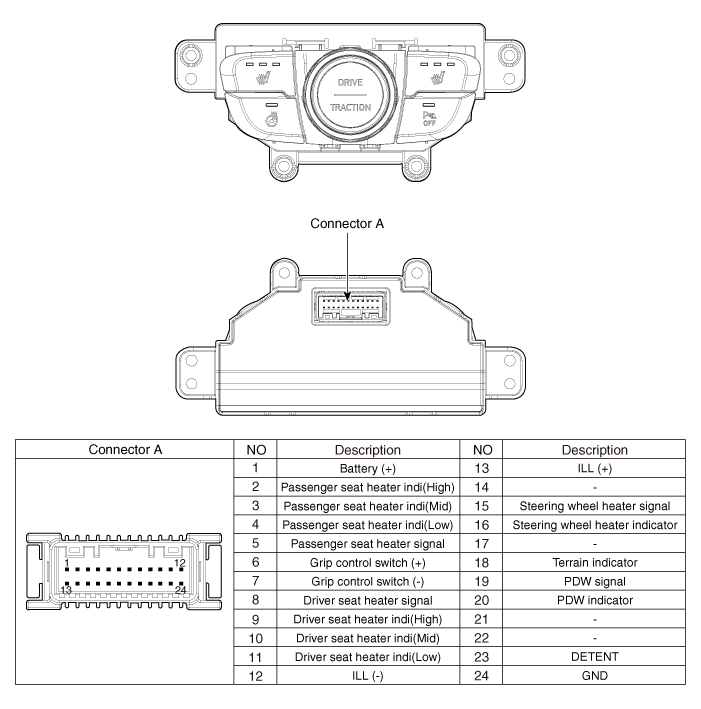

Hyundai Venue. Heated Steering wheel. Schematic diagrams

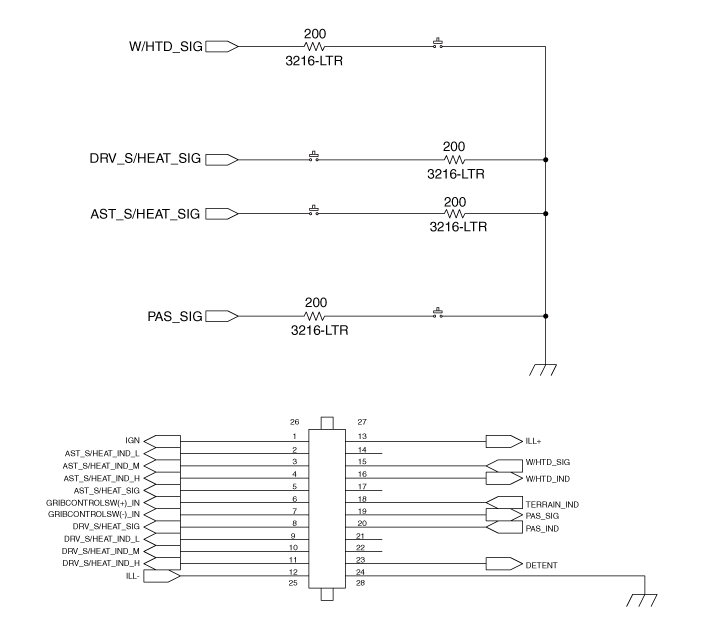

Hyundai Venue. Heated Steering wheel. Schematic diagrams

    Heated Steering wheel. Description and operation

    Description • For the convenience of drivers during the winter, exothermic paint is applied to the surface of the steering wheel to generate heat when it is gripped...

    Heated Steering wheel. Repair procedures

    Removal [Heated steering wheel switch] 1. Disconnect the negative (-) battery terminal. 2. Remove the floor console upper cover...
