Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the MDPS.
(Refer to Steering System - "Motor Driven Power Steering")
3.

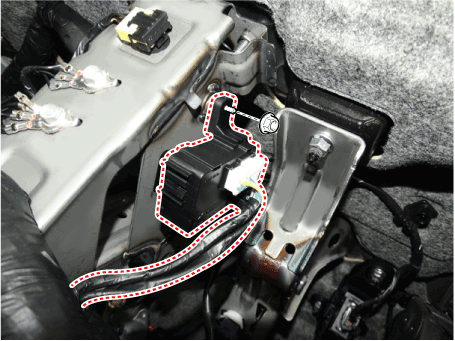

Remove the PDM relay box (A) after mouting nuts and disconnecting the connector.

Hyundai Venue. PDM (Power Distribution Module). Repair procedures

Installation
1.
Remove the PDM relay box after connecting the connector.
2.
Install the MDPS.
(Refer to Steering System - "Motor Driven Power Steering")
3.
Connect the negative (-) battery terminal.
