Inspection
Front Power Window Motor
1.
Disconnect the negative (-) battery terminal.
2.
Remove the front door trim.
(Refer to Body - "Front Door Trim")
3.

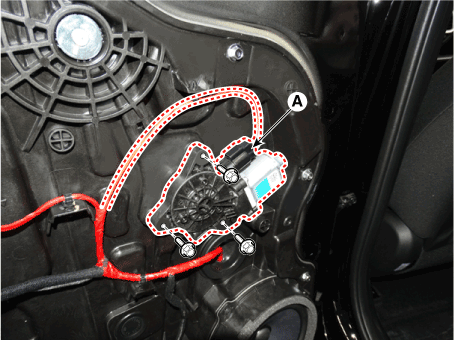

Disconnect the connector (A) from the motor.

Hyundai Venue. Power Window Motor. Repair procedures

4.
Connect the motor terminals directly to battery voltage (12V) and check that the motor operates smoothly. Next, reverse the polarity and check that the motor operates smoothly in the reverse direction. If the operation is abnormal, replace the motor.

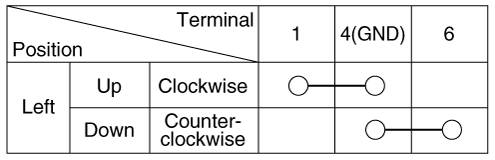

[Safety Power Window]

Hyundai Venue. Power Window Motor. Repair procedures

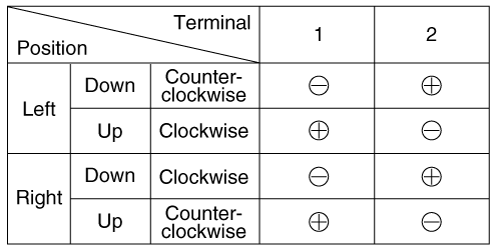

[Standard Power Window]

Hyundai Venue. Power Window Motor. Repair procedures

Rear Power Window Motor
1.
Disconnect the negative (-) battery terminal.
2.
Remove the rear door trim.
(Refer to Body - "Rear Door Trim")
3.
Disconnect the connector (A) from the motor.

Hyundai Venue. Power Window Motor. Repair procedures

4.
Connect the motor terminals directly to battery voltage (12V) and check that the motor operates smoothly. Next, reverse the polarity and check that the motor operates smoothly in the reverse direction. If the operation is abnormal, replace the motor.
