Hyundai Venue (QX): Convenient Features / Automatic Climate Control System

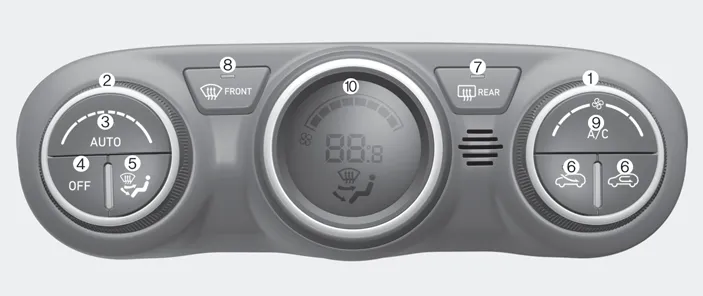

1. Fan speed control knob
2. Temperature control knob
3. AUTO (automatic control) button
4. OFF button
5. Mode selection button
6. Recirculation mode/Fresh mode
7. Rear window defroster button (if equipped)
8. Front windshield defroster button
9. A/C (Air conditioning) button
10. Climate control screen
Cabin air filter [A] : Outside air, [B] : Recirculated air [C] : Cabin air filter, [D] : Blower [E] : Evaporator core, [F] : Heater core The cabin air filter is installed behind the glove box.
The Automatic Climate Control System is controlled by setting the desired temperature. 1. Press the AUTO button (3). The modes, fan speeds, air intake and air-conditioning will be controlled automatically by the temperature setting you select.
