Hyundai Venue: ABS(Anti-Lock Brake System) / Rear Wheel Speed Sensor. Components and components location

Hyundai Venue (QX) (2020-2022) Service Manual / Brake System / ABS(Anti-Lock Brake System) / Rear Wheel Speed Sensor. Components and components location

Components

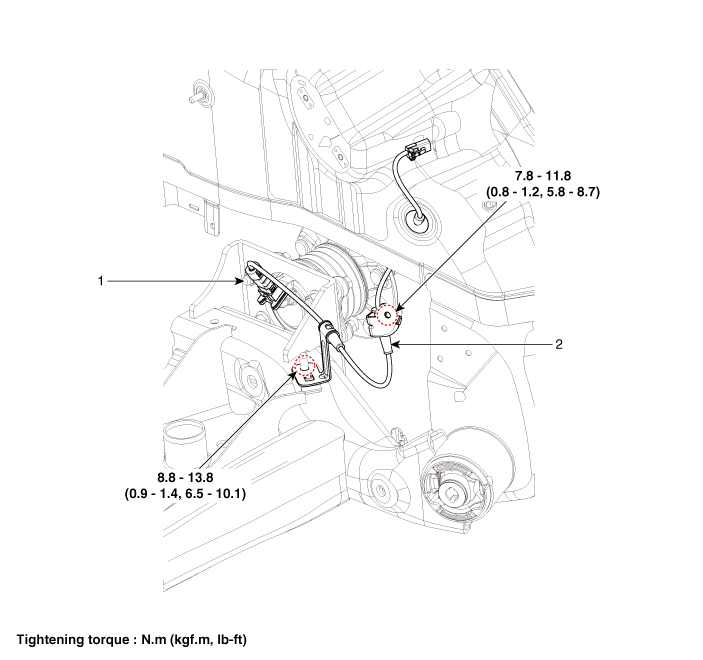

Hyundai Venue. Rear Wheel Speed Sensor. Components and components location

1. Rear wheel speed sensor connector
2. Rear wheel speed sensor
