Hyundai Venue: indshield Wiper/Washer / Windshield Wiper-Washer Switch. Repair procedures

Hyundai Venue (QX) (2020-2024) Service Manual / Body Electrical System / indshield Wiper/Washer / Windshield Wiper-Washer Switch. Repair procedures

Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the steering wheel.
(Refer to Steering System - "Steering Wheel")
3.
Remove the steering column upper and lower shrouds after loosening the screws.
(Refer to Body - "Steering Column Shroud Panal")
4.
Remove the clock spring.
(Refer to Restraint - "Driver Airbag (DAB) Module and Clock Spring")
5.

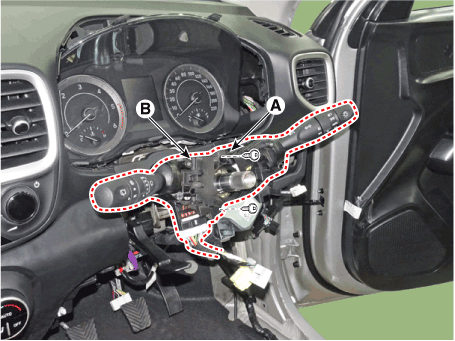

Remove the multifunction switch assembly (A) after loosening the screws and disconnecting the connector (B).

Hyundai Venue. Windshield Wiper-Washer Switch. Repair procedures

Installation
1.
Install the multifunction switch.
2.
Install the clock spring.
3.
Install the steering column upper and lower shrouds.
4.
Install the steering wheel.
Inspection
[Wiper Switch / Washer Switch]
1.

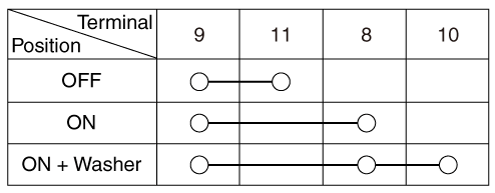

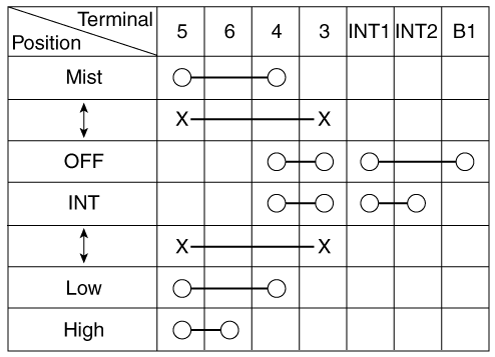

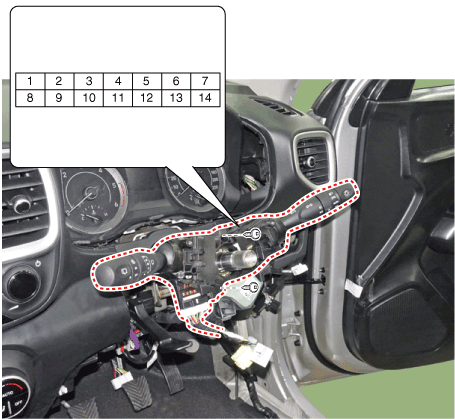

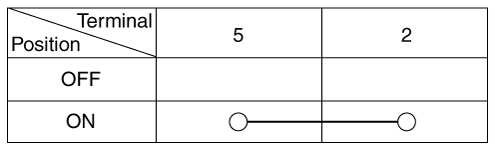

Check for continuity between the terminals in each switch position as shown below.

Hyundai Venue. Windshield Wiper-Washer Switch. Repair procedures

Hyundai Venue. Windshield Wiper-Washer Switch. Repair procedures

Hyundai Venue. Windshield Wiper-Washer Switch. Repair procedures

Hyundai Venue. Windshield Wiper-Washer Switch. Repair procedures
