Disconnect the negative (-) battery terminal.

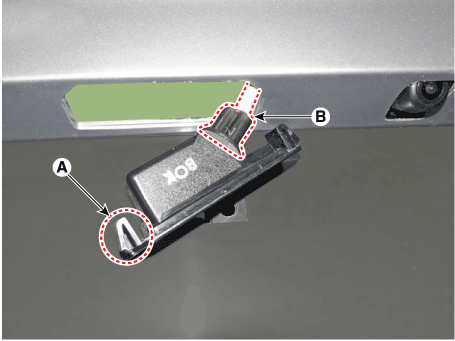

Remove the license lamp assembly after pushing the fixing clip (A).
Replace the bulb after turning the bulb socket (B) counterclockwise.

Hyundai Venue. Repair procedures

Install the bulb.
Install the license lamp lens.
