Removal
Front Seat Belt Pretensioner (BPT)
1.
Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
2.
Remove the door scuff trim.
(Refer to Body - "Interior Trim")
3.
Remove the center pillar trim.
(Refer to Body - "Interior Trim")
4.

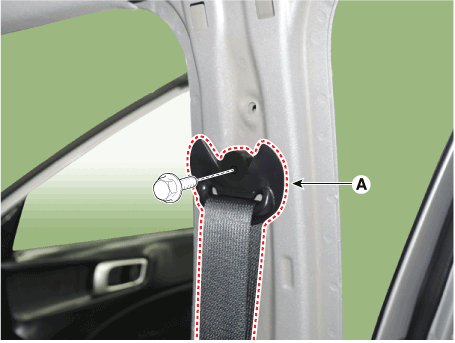

Remove the front seat belt upper anchor bolt.

Hyundai Venue. Repair procedures

5.

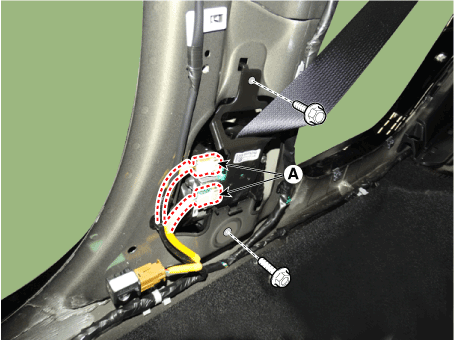

Disconnect the front seat belt pretensioner connector (A) and then remove the seat belt pretensioner (B).

Hyundai Venue. Repair procedures

Rear Seat Belt Pretensioner (BPT)
1.
Remove the luggage side trim.
(Refer to Body - "Luggage Side Trim")
2.
Remove the rear pillar trim.
(Refer to Body - "Rear Pillar Trim")
3.
Remove the rear seat belt pretensioner after loosening mounting bolts and seat belt lower anchor bolt.
Installation
Front Seat Belt Pretensioner (BPT)
1.
Remove the ignition key from the vehicle.
2.
Disconnect the battery negative cable and wait for at least three minutes.
3.
Install the seat belt pretensioner.
Tightening torque
Bolt A : 39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)
4.
Connect the seat belt pretensioner connector.
Hyundai Venue. Repair procedures
Make sure the lock pin is connected in properly.
5.
Install the front seat belt upper anchor bolt.
Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)
6.
Install the center pillar trim.
(Refer to Body - "Interior Trim")
7.
Install the door scuff trim.
(Refer to Body - "Interior Trim")
8.
Reconnect the battery negative cable.
9.
After installing the seat belt pretensioner, confirm proper system operation :
Turn the ignition switch ON; the SRS indicator light should be turned on for about six seconds and then go off.
Rear Seat Belt Pretensioner (BPT)
1.
Remove the ignition key from the vehicle.
2.
Disconnect the battery negative cable and wait for at least three minutes.
3.
Install the seat belt pretensioner.
Tightening torque
Bolt A : 39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)
4.
Connect the seat belt pretensioner connector.
5.
Install the front seat belt upper anchor bolt.
Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)
6.
Install the rear pillar trim.
7.
Install the luggage side trim.
